| Place of Origin: | China |
| Brand Name: | SIMO BLOWER |
| Certification: | CE/ISO9001/ISO45001 |
| Model Number: | cantrifugal fan |

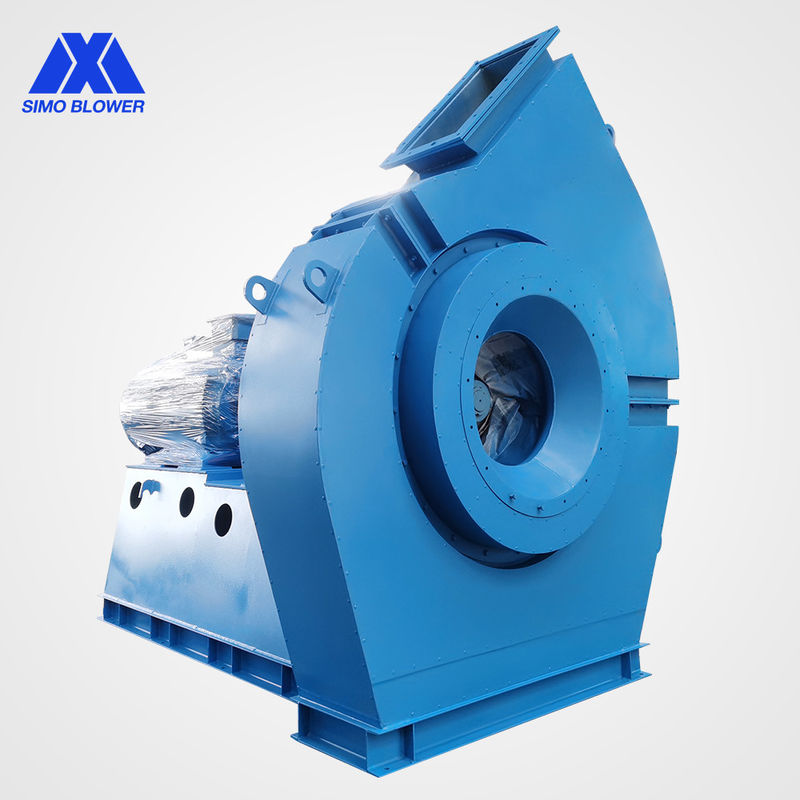

Glass Kiln Flue Gas Treatment High Temperature Industrial Centrifugal Fan Blower
The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
| Small flow, medium pressure boiler high temperature centrifugal fan | |||
| Performance | Pressure range | 3215-27349 | Pa |
| Air flow range | 1049-33030 | m3/h | |
| Impeller diameter | 400-3500 | mm | |
| Speed | ≤3000 | rpm | |
| Material | Blower fan casing | Q235, Q345, stainless steel | Design as special |
| Blower fan shaft | 45# steel, Q304, SS304,SS316L | ||
| Blower fan impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120 | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components |
System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
 |
 |
 |
 |
 |
 |
 |
 |
 |
