| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 6-08 |
| Minimum Order Quantity: | 1 Set |
| Price: | 300-5000 USD |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Feature: | High Performance | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
|---|---|---|---|
| Bearing: | SKF/FAG/By Your Demand | Lubrication: | Oil Bath Lubrication |
| Impeller: | Dynamic Balanced | Color: | Customer's Requirement |
| High Light: | industrial centrifugal extractor fan,explosion proof centrifugal fan,Green Industrial Centrifugal Extractor Fan |
||

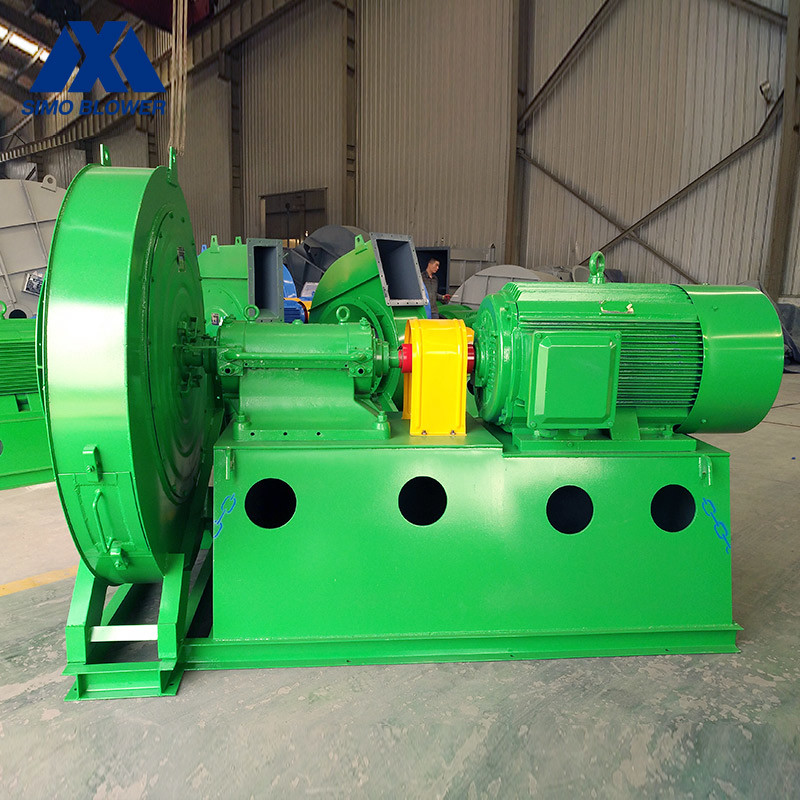

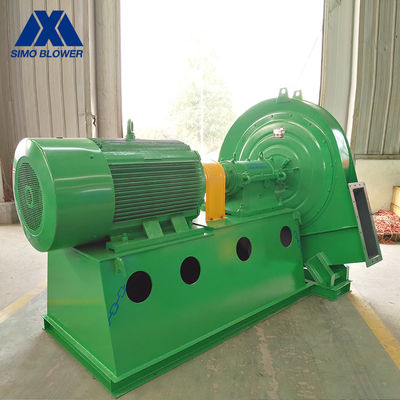

Industrial Waste Heat Recovery Device Antifraying Centrifugal Blower Fan
Introduction
Industrial Waste Heat Recovery Device Antifraying Centrifugal Blower Fan : The medium to be transported should be non-corrosive, non-flammable, explosive, and free of viscous substances. The dust and hard particles contained in the medium should be no more than 150mg/m3.
Medium temperature: The medium temperature of standard industrial centrifugal fans is not more than 80 °C, the V-belt driving type fan can transport media below 150 °C for a long time when it is added to the heat-dissipating wheel.
Technical data
|
PRODUCT PARAMETERS
|
|||
|
Centrifugal Blower Fan Application
|
Temperature | Normal temperature air, Hot air | |
|
Air composition |
Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
|
Centrifugal Blower Fan Performance
|
Impeller diameter | 400~2800 |
mm |
| Speed of mainshaft |
≤3000 |
rpm | |
| Pressure range | 2284~14122 | Pa | |
| Flow range |
1381~261494 |
m3/h | |
|
Centrifugal Blower Fan Structure
|
Blade | Backward | |
| Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
| Drivetrain | Coupling | Can assign | |
| Lubrication | Oil bath lubrication | ||
| Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
|
Centrifugal Blower Fan System
configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
| Impeller |
Q235, Q345, SS304, SS316, HG785, DB685... |
||
|
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
| Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
| Bearing | FAG, SKF, NSK, ZWZ… | ||
|
Centrifugal Blower Fan Optional
components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
||
Advantages and Features
1. This series of industrial centrifugal fan is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
3. V-belt and coupling drivetrain industrial centrifugal fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to disassemble.
5. The collector is equipped with a mounting flange to facilitate the customer to use the pipeline.
