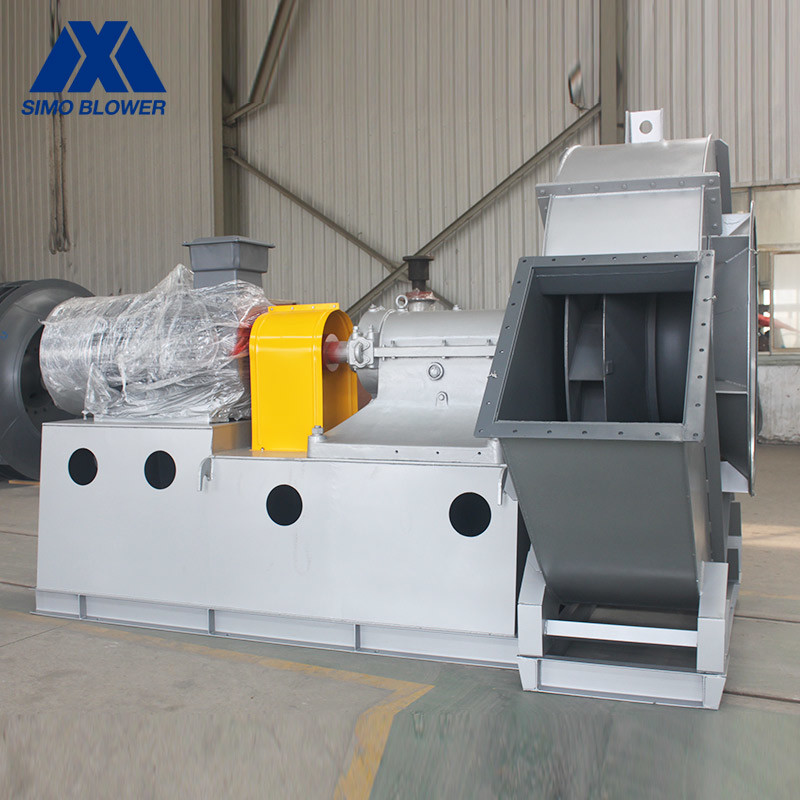

Stainless Cooling Ventilator Industrial Centrifugal Blower Fan Medium Pressure

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-12
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Motor: SIEMENS/ABB/By Your Demand Warranty: 1 Year
Category: Blower Impeller: Dynamic Balanced
Material: Carbon Steel/Alloy Steel/Stainless Steel Motor Type: Three Phase AC Motor
High Light:

industrial centrifugal extractor fan

,

airflow centrifugal fan

Medium Pressure Stainless Steel Cooling Industrial Centrifugal Fan



Introduction



Medium Pressure Stainless Steel Cooling Industrial Centrifugal Fan is suitable for conveying non-flammable gas and granule/powder/chip/fiber material at normal temperature or high temperature.

The output gas flow is slightly larger than the 6-11 series heavy-duty industrial centrifugal fan, the air volume is large, and the pressure is high, smooth operation, high reliability and long life.

Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.

For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.

Technical data



Industrial Centrifugal Fan series Industrial Centrifugal Fan model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m3/h)
Power
(kW)
6-12 3.15D 16003150 3541880 7553323 0.753
4D 12502500 3451933 11845495 0.754
5D 14002000 6751953 24878623 2.27.5
6.3D 10001600 3441985 177613799 1.111
8D 11201400 5471517 355412074 37.5
10D 8001250 3501953 284322075 1.515
12.5D 4001000 3502043 740256902 2.222


Advantages and Features



1. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

2. The Industrial Centrifugal Fan blade placement angle is optimized, more wear-resistant and longer service life.

3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.

4. The Industrial Centrifugal Fan is equipped with temperature and vibration sensors, which can easily install the fan operation monitoring device.

5. Made of high quality carbon steel, stainless steel or other metal materials are available upon request.




Stainless Cooling Ventilator Industrial Centrifugal Blower Fan Medium Pressure 0

Stainless Cooling Ventilator Industrial Centrifugal Blower Fan Medium Pressure 1

Stainless Cooling Ventilator Industrial Centrifugal Blower Fan Medium Pressure 2
