| Place of Origin: | Henan China |
|---|---|
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 4-10 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Wooden Case Packing, Steel pallet Packing |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C, Payment Term Is Negotiable |
| Supply Ability: | 500 Sets Per Month |
| Impeller: | Dynamic Balanced | Color: | Customer's Requirement |
|---|---|---|---|
| Motor Type: | Three Phase AC Motor | Material: | Carbon Steel/Alloy Steel/Stainless Steel |
| Main Shaft: | High-strength Carbon Structural Steel | Blade: | Forward / Backward/Backward Curved |
| High Light: | 1400pa Low Pressure Blower,1400pa Low Pressure fan,30993m3/h Low Pressure Blower |
||

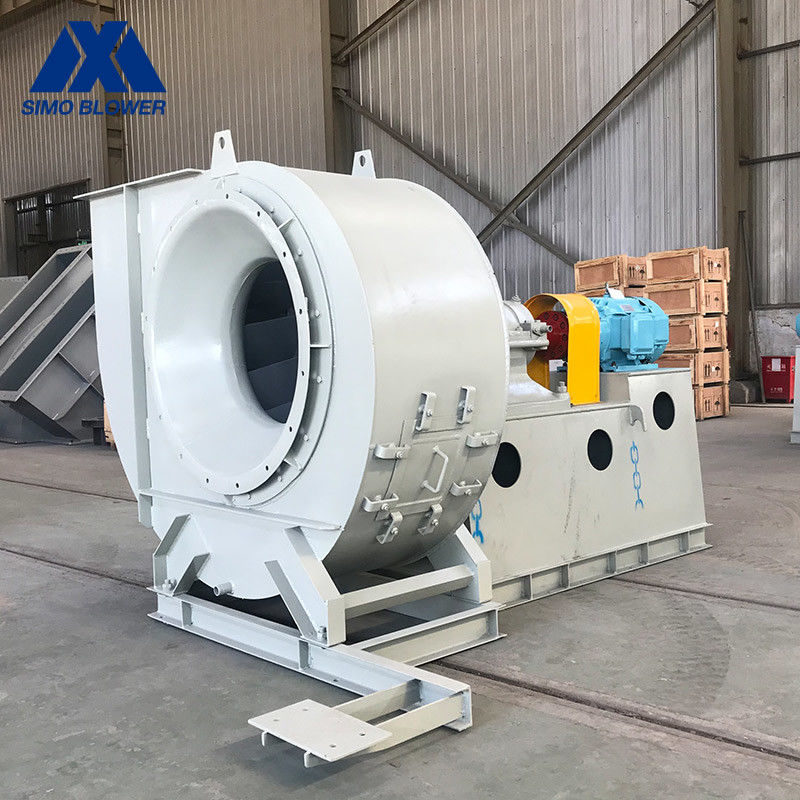

Forward Coupling Driving Low Pressure Explosion Proof Centrifugal Blower
Product Features
1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
2. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.
3. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.
4. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.
5. The impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.
6. After the production is completed, all products are tested for running and vibration values for reliable operation.
7. Installation is simple and does not require the support of professional technicians.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 4-10 | 8D | 1450 | 2104～1400 | 16156～30993 | 18.55 |
| 9D | 960 ~ 1450 | 775 ~ 2668 | 15229 ~ 44128 | 11 ~ 37 | |
| 10D | 730 ~ 1450 | 553 ~ 3301 | 15886 ~ 60533 | 7.5 ~ 55 | |
| 11D | 730 ~ 1450 | 669 ~ 4003 | 21144 ～ 80570 | 11 ~ 90 | |
| 12D | 730 ~ 1450 | 797 ~ 4777 | 25661 ~ 104600 | 15 ~ 132 | |
| 14D | 730 ~ 1450 | 1086 ~ 6541 | 43591 ～166100 | 37 ~ 315 | |
| 16D | 580 ~ 960 | 895 ~ 3709 | 51699 ~ 164150 | 45 ~ 185 | |
| 18D | 580 ~ 960 | 1133 ~ 4710 | 73610 ~ 233730 | 75 ~ 280 | |
| 20D | 580 ~ 960 | 1400 ~ 5837 | 100970 ～ 320610 | 110 ~ 520 | |
| 22D | 480 ~ 960 | 1216 ~ 6865 | 116000 ～ 434000 | 140 ~ 850 | |
| 25D | 480 ~ 730 | 1579 ~ 5138 | 171000 ～ 484000 | 165 ~ 700 | |
| 28D | 375 ~ 730 | 1205 ~ 6400 | 187000 ~ 680000 | 320 ~ 1250 | |
| 29.5D | 596 ~ 745 | 3236 ~ 7218 | 348000 ~ 810000 | 800 ~ 1600 |
Advantages
The 4-10 series centrifugal Fan can be used for indoor ventilation in general factories and large buildings.
It can be used as both an input gas and an output gas. The type of gas transported is air and other non-self-igniting, non-self-explosive, non-surrounding, harmless to the human body and is non-corrosive to steel materials.
It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.
No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3. The gas temperature does not exceed 80°C, and similar gas properties are also available.
Can be widely used in factories, mines, stadiums, theaters, basements, large hotels, restaurants, shopping malls and large buildings for ventilation, cooling and dust removal, etc, it can also be used as a gas cycle with other types of mechanical equipment, the primary transport medium is air and other gases that are not self-igniting, non-self-destructing, harmless to the human body, and non-corrosive to steel.
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
