Coupling Driving Industrial Centrifugal Fans Materials Delivery Of Industrial Kilns

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Blade Material: Stainless Steel,Cast Iron,Q235
Electric Current Type: AC Application: Industrial/ Explosion Resistant/Smoke/ Explosion Resistant
Color: Customer's Requirement Usage: Fresh Air,ventilation
High Light:

industrial centrifugal extractor fan

,

explosion proof centrifugal fan

Materials Delivery Of Industrial Kilns Coupling Driving Centrifugal Fan



Introduction



The 6-11 series Materials Delivery Of Industrial Kilns Coupling Driving Centrifugal Fans have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.

Materials Delivery Of Industrial Kilns Coupling Driving Centrifugal Fan has excellent performance and can output high pressure.

Materials Delivery Of Industrial Kilns Coupling Driving Centrifugal Fan can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.

After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.



Technical data



Centrifugal Fan series Centrifugal Fan model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630


Advantages and Features



1. Materials Delivery Of Industrial Kilns Coupling Driving Centrifugal Fan can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.

2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

6. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

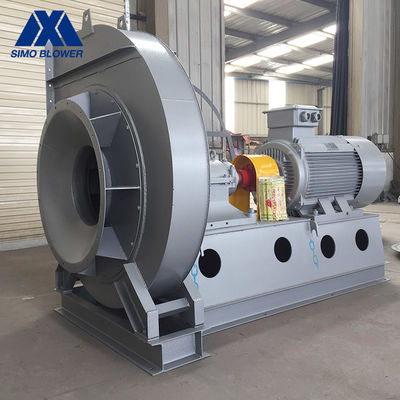

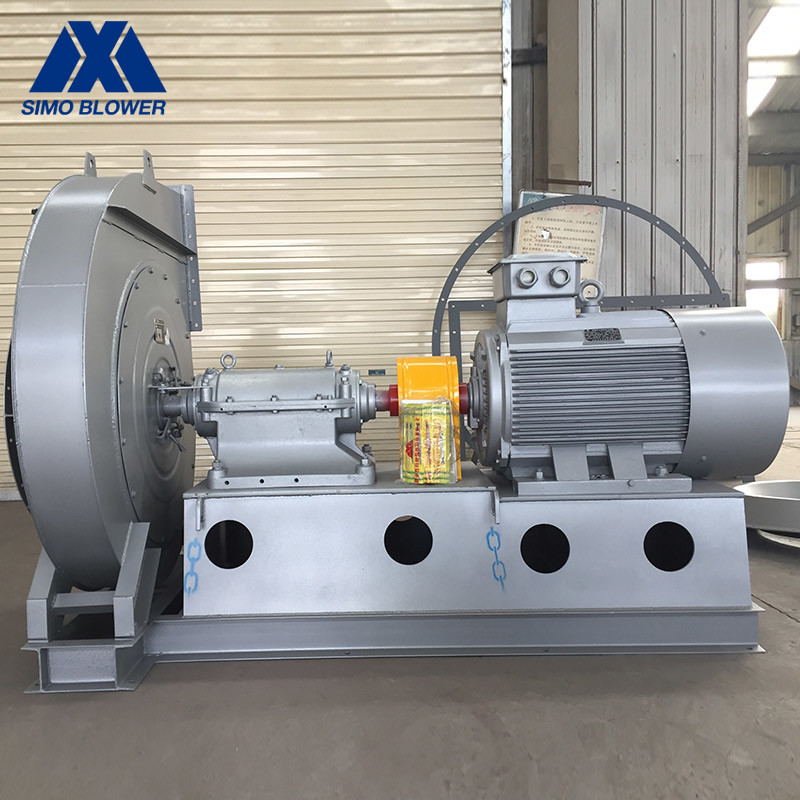

Coupling Driving Industrial Centrifugal Fans Materials Delivery Of Industrial Kilns 0Coupling Driving Industrial Centrifugal Fans Materials Delivery Of Industrial Kilns 1

Coupling Driving Industrial Centrifugal Fans Materials Delivery Of Industrial Kilns 2
