Single Suction Industrial Centrifugal Fans Large Capacity Stainless Steel Blower

Single Suction Industrial Centrifugal Fans Large Capacity Stainless Steel Blower

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 4-09
Voltage:
380V/415V/440V/660V/6KV/10KV
Drivetrain:
V-belt Driven
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Impeller:
Dynamic Balanced
Color:
Customer's Requirement
Mounting:
Free Standing
High Light:

High Light

High Light:

explosion proof centrifugal fan

,

airflow centrifugal fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Large Capacity Stainless Steel Single Suction Industrial Centrifugal Fan



Introduction



Large Capacity Stainless Steel Single Suction Industrial Centrifugal Fan is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.

In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.

After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

After running test and vibration value detection, the operation is reliable.





Technical data



PRODUCT PARAMETERS
Industrial Centrifugal Fan Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder 6

   Industrial Centrifugal

Fan  performance

  600~1200

mm

Speed of mainshaft

400~1450

rpm
Pressure range 220~3202 Pa
Flow range

3684~75552

m3/h
Industrial Centrifugal
Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt  Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Industrial Centrifugal
Fan System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Industrial Centrifugal
Fan Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1.Large Capacity Stainless Steel Single Suction Industrial Centrifugal Fan can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures.

2. The industrial centrifugal fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3.The industrial centrifugal fan's bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device.

4. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

5. The industrial centrifugal fan's bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.

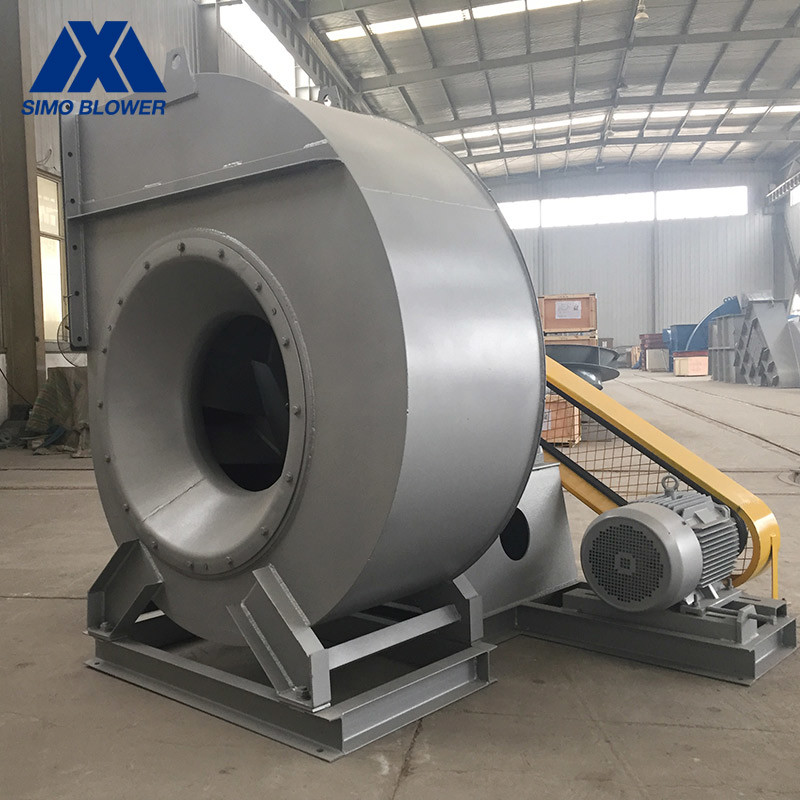

Single Suction Industrial Centrifugal Fans Large Capacity Stainless Steel Blower 0
