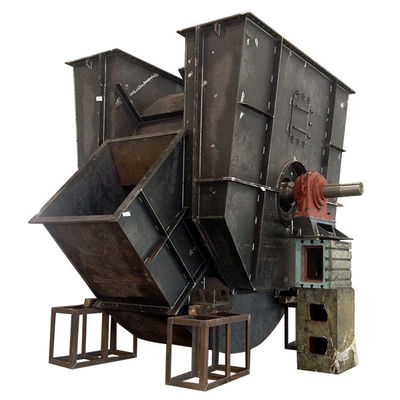

Energy Saving Double Suction Centrifugal Fan 2000-900000m3/H F Series

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Feature: High Efficiency
After-sales Service Provided: Field Installation, Commissioning And Training Drivetrain: Direct/Coupling Driven/V-belt Driven
Noise: Optional Bearing Type: Rolling Bearing
Keywords: Steel Mill Fan Warranty: 1 Year
High Light:

energy saving Double Suction Centrifugal Fan

,

Double Suction Centrifugal Fan 900000m3/H

,

Centrifugal Ventilation Fans 900000m3/H

F Series Double Suction Centrifugal Fan

Introduction Of F Series Double Suction Centrifugal Fan

Simo blower can provide multiple specifications of centrifugal fans, performance range: flow rate: 2000---900000 m3/h, pressure: 1000---20000 pa, working temperature: 20---500 ℃, motor power: 200-- ---4000kw, Sima Fan's main business: cement mill circulation fan/raw meal mill circulation fan/kiln tail high temperature fan/grate cooler cooling fan, circulating fluidized bed special fan/waste heat power generation boiler special fan, sintering machine main exhaust Machine/cooling fan/large dust removal fan, pellet ring cooler, bag filter fan, chemical corrosion-resistant fan, gas blower and more than 300 kinds of energy-saving centrifugal fan products.

Technical data

       serice model Air Capacity(m³/h) Total Pressure(Pa) High Efficiency(10%) Rotation Speed(r/min)
【4-10】 No20F~31.5F 121000~1550000 2140~9100 85.5 730~960
【5-10】 No20F~35.5F 108000~1460000 2450~12500 83.1 730~960
【5-12】 No20F~35F 100000~1024655 1000~15000 83 730~960
【6-18】 No20F~35.5F 103720~1480000 2805~13600 83.2 730~960
【7-05】 No20F~33.5F 77820~1050000 4030~13400 83 730~960

Programme measures

1. High temperature measures: the use of high temperature alloy, reasonable cooling measures, scientific high temperature deformation prevention structure
2. Wear-resistant measures: high hardness composite material, ensure the use of impeller, prolong the life
3. Anti-corrosion measures: a variety of anti-corrosion measures to adapt to different corrosion conditions
4. Efficient products: simulation analysis and optimization of the efficient model, strict processing process

Energy Saving Double Suction Centrifugal Fan 2000-900000m3/H F Series 0

Advantage of cima

1. Strong technical research and development strength, advanced, scientific and accurate design;
2. The manufacturing process is rigorous and accurate, and the process equipment is perfect and advanced;
3. Scientific and standard performance test center to verify model parameters;
4. Rich experience in field testing;
5. Professional team, no worries after sale.

FAQ

1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

company introduction



Energy Saving Double Suction Centrifugal Fan 2000-900000m3/H F Series 1

Energy Saving Double Suction Centrifugal Fan 2000-900000m3/H F Series 2

Xinxiang SIMO Blower Co., Ltd., formerly known as Xinxiang Blower Factory, was established in 1955, which is the designated factory for fan production by the former Ministry of Machinery Industry. In 2006, the state-owned enterprise was restructed. In August 2008, the company was registered as Xinxiang SIMO Blower Limited Company, with a registered capital of RMB32,000,000. In June 2016, the company was renamed as Xinxiang SIMO Blower Co., Ltd. In May 2018, the national SME share transfer system was listed. It is one of the larger fan manufacturers in central China and a member unit of China Fan Association. SIMO Blower is a state-level high-tech enterprise, safety production standardization of level3 enterprise, a provincial level1 advanced management enterprise, and has won more than 20 provincial and municipal honorary titles such as "contract-honoring & trustworthy enterprise", "advanced quality management unit", and "customer satisfied enterprises". The company has passed the national level industrialization and information integration management system assessment, ISO9001 quality management system certification, ISO14001 environmental management system certification, OHSAS45001 occupational health and safety management system certification and CE certification.
