Backward Centrifugal Fan High Temperature Materials Cooling SIMO Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Blade: Backward Drivetrain: Coupling Driven
Motor: SIEMENS/ABB/By Your Demand Mounting: Free Standing
System Type: Single Inlet, Overhang Type Medium: Clean Air/Dusty Air
High Light:

single inlet single width centrifugal fan

,

backward centrifugal fan

High Temperature Materials Cooling Energy Saving Heavy Duty Centrifugal Fan

Introduction



The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.

It has excellent performance and can output high pressure.

High Temperature Materials Cooling Energy Saving Heavy Duty Centrifugal Fan can be used to transport normal temperature or high temperature non-flammable gases, particles, powder, debris, fibrous materials etc.

The fans are commonly used in large-scale industrial systems such as large dust removal systems, industrial desulfurization and denitrification, large industrial boiler systems, large industrial rotary kilns and calcining kiln systems, and mineral powder sintering (sintering machines) and so on.



Technical data



PRODUCT PARAMETERS
Heavy Duty Centrifugal Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Heavy Duty Centrifugal Fan
Performance
Impeller diameter 1400~2000 mm
Speed of mainshaft

1450

rpm
Pressure range 5435~14461 Pa
Flow range 22889~121114 m3/h
Heavy Duty Centrifugal Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Heavy Duty Centrifugal Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Heavy Duty Centrifugal Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.


Advantages and Features



1. High Temperature Materials Cooling Energy Saving Heavy Duty Centrifugal Fan can output higher outlet pressure and can work in high temperature medium, suitable for any need to transport high pressure & high temperature gas industrial occasions.

2. According to customer performance requirements customized design, and optimized by CFD technology, the energy consumption is lower than similar models.

3. For the material of impeller and main spindle, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main spindle at high temperature still maintain reliable strength.

4. For dusty gas, we can meet all kinds of working conditions from small amount of dust to large amount of dust. After special treatment, the hardness of blade surface can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

5. The moderate bonding between the components is tight, and the sealing performance is good, ensuring that the output pressure will not be reduced.

6. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

7. Ultrasonic flaw detection on the welding seam and main spindle of the impeller to ensure that there are no welding defects or material defects and ensure the strength.

8. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.

9. Test assembly after production is completed to ensure that there is no interference between the components.

10. Provide on-site arrangement and guidance services.

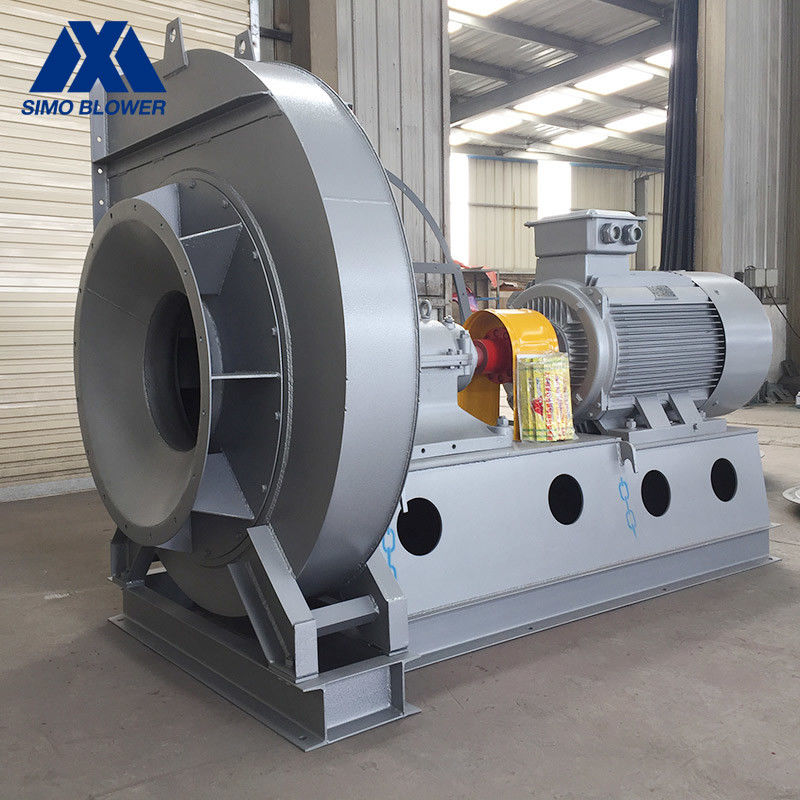

Backward Centrifugal Fan High Temperature Materials Cooling SIMO Blower 0

Backward Centrifugal Fan High Temperature Materials Cooling SIMO Blower 1
