Double Suction Centrifugal Fan SIMO Primary Air Fan In Boiler Blue

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Type: Centrifugal Fan Feature: High Performance
Material: Carbon Steel/Alloy Steel/Stainless Steel After-sales Service Provided: Field Installation, Commissioning And Training
Lubrication: Oil Bath Lubrication Color: Customer's Requirement
High Light:

single inlet single width centrifugal fan

,

backward centrifugal fan

,

SIMO Primary Air Fan

Double Suction Heavy Duty Industrial Boiler Primary Air Centrifugal Blower Fan

Introduction



The 7-09 series medium pressure heavy duty centrifugal blower fan has moderate pressure and large flow, belongs to the low noise series fan and has stable performance.

It’s suitable for conveying normal temperature or high temperature non-flammable gas (normal air, high temperature gas, corrosive gas, dusty gas), and conveying granule/powder/chip/fiber material.

It’s a widely used medium-pressure heavy-duty centrifugal fan, which is commonly used in industrial systems such as boilers, dust collectors, desulfurization systems, cement, chemicals, metallurgy, electric power, and gas and material transportation. It can also be used for general ventilation.

For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan  Performance
Impeller diameter 1500~3500 mm
Speed of mainshaft

≤1450

rpm
Pressure range 4217~15694 Pa
Flow range 4293~773605 m3/h
Centrifugal Fan  Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan  System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan  Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Double Suction Heavy Duty Industrial Boiler Primary Air Centrifugal Blower Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.

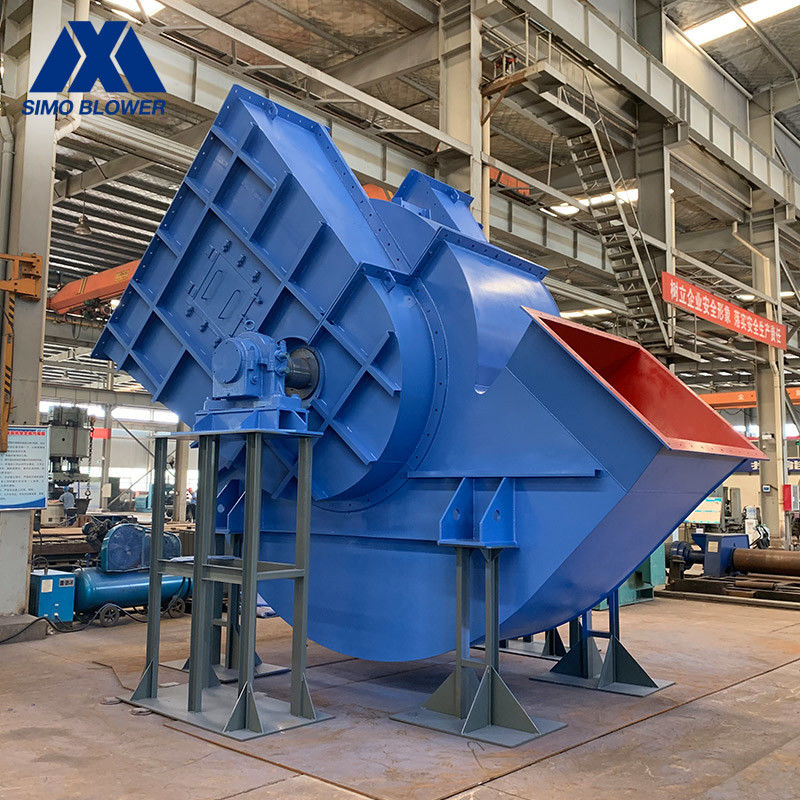

Double Suction Centrifugal Fan SIMO Primary Air Fan In Boiler Blue 0

Double Suction Centrifugal Fan SIMO Primary Air Fan In Boiler Blue 1
