Coupling Driving Heavy Duty Industrial Blower Centrifugal Ventilation Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Category: Blower Feature: High Performance
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Delivery Time: 30 Days
Material: Carbon Steel/Alloy Steel/Stainless Steel Mounting: Free Standing
High Light:

industrial blower fan

,

single inlet single width centrifugal fan

,

Coupling Driving Centrifugal Ventilation Fans

Heavy Duty Air Supply Of Industrial Kilns Coupling Driving Centrifugal Fan



Introduction



The 5-06 series heavy duty centrifugal blower fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.

Heavy Duty Air Supply Of Industrial Kilns Coupling Driving Centrifugal Fan can be used for more than four years when the concentration of impurities is less than 200 mg/m3.

If it contains a lot of impurities, it also can be used, but it will shorten the service life.

The maximum operating temperature of the induced draft fan must not exceed 250°C.

The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 800~1240 mm
Speed of mainshaft

1450

rpm
Pressure range 1989~4051 Pa
Flow range 12028~76740 m3/h
Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. Centrifugal Blower Fan Impeller:

12 pieces of backward aerofoil blades are welded between the Arc cone front plate and the flat shaped rear plate. Because of the use of airfoil blades, the fan is guaranteed to have high efficiency, low noise and high strength. The impeller is corrected by static and dynamic balance, so the operation is stable. Forced draught fan and induced draught fan of the same machine number have same impeller structure.



2. Centrifugal Blower Fan Casing:

The casing is a volute welded by ordinary steel plates.

The casing of a single suction fan is made in three different forms: The No. 8 to 12 casing is made into an integral structure and cannot be disassembled; The No. 14 to 16 casing is made into a two open structure; The No. 18~29.5 casing is made into a three open structure.

The induced draft fan and the volute plate are appropriately thickened to prevent wear.



3. Centrifugal Blower Fan Inlet:

The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.



4. Centrifugal Blower Fan Adjustment door:

A device for regulating the flow of the fan, axially mounted in front of the air inlet. The adjustment range is from 0° (full open) to 90°(fully closed).



5. Centrifugal Blower Fan Transmission parts:

The main shaft of the transmission part is made of high-quality steel, and the 5-06 series of fans are all made of roller bearings.

The bearing housing is available in two forms: No. 8 ~ 16 uses a whole cylindrical bearing housing; No18 ~ 29.5 uses two independent pillow bearing boxes.

The Centrifugal Blower Fan bearing housing is equipped with a thermometer and an oil level indicator (only the induced draft fan). The lubricating oil uses 46# mechanical oil, and the oil quantity is implemented according to the oil level mark. When the No8-16 integral cylindrical bearing housing uses dry oil, the oil retaining plate should be added to the ball side of the bearing housing, and the fixing grooves communicate with each other. The induced draft fan is equipped with a water cooling device, so a water supply pipe must be installed. Water consumption varies with temperature, and is generally considered to be 0.5 to 1 m3/h.

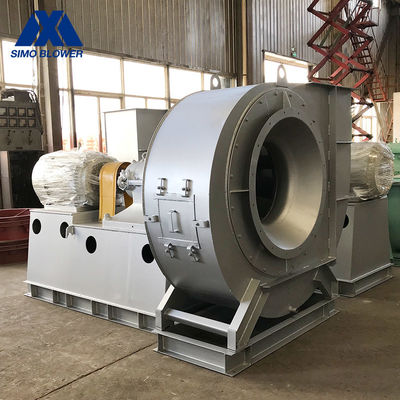

Coupling Driving Heavy Duty Industrial Blower Centrifugal Ventilation Fans 0

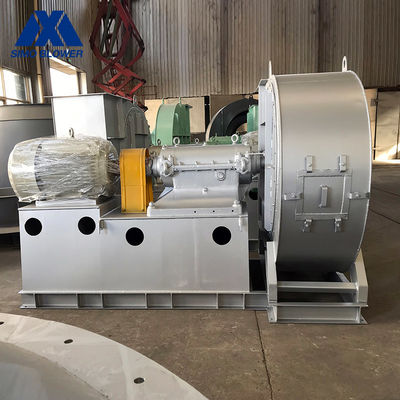

Coupling Driving Heavy Duty Industrial Blower Centrifugal Ventilation Fans 1
