Heat Dissipation Forced Draught Fan In Boiler Centrifugal Exhaust Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Warranty: 1 Year After-sales Service Provided: Field Installation, Commissioning And Training
Voltage: 380V/415V/440V/660V/6KV/10KV Motor Type: Three Phase AC Motor
Blade: Backward Main Shaft: High-strength Carbon Structural Steel
High Light:

industrial blower fan

,

backward centrifugal fan

,

Heat Dissipation Forced Draught Fan

Industrial Equipments Heat Dissipation Heavy Duty Forced Draught Centrifugal Fan



Introduction



Mainly to meet the dust emission requirements of the electric arc furnace exhaust gas purification equipment, improve the workshop environment, to ensure that the dust concentration in the electric furnace working area meets the “sanitary standards for industrial enterprises”, and can also be used in various occasions with the same functional requirements.

The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.

Mainly circulating fluidized bed system, smoke exhaust, material drying, industrial dust collector / filtration system, flue gas desulfurization, flue gas denitrification, industrial boiler induced air, cement production line, industrial waste heat recovery device, mineral powder sintering ( sintering machine), Coke production (coking furnace), etc, is especially suitable for various harsh conditions such as high temperature, wear and corrosion.



Technical data



PRODUCT PARAMETERS
Centrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan Performance
Impeller diameter 400~1250 mm
Speed of mainshaft

1000~3550

rpm
Pressure range 742~4483 Pa
Flow range 2065~67803 m3/h
Centrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.

2. The centrifugal fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. The centrifugal fan bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

5. Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

6. The centrifugal fan bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.

7. The centrifugal fan impeller is annealed to completely eliminate the internal stress generated during welding, ensuring that the impeller does not undergo creep and cracks.

8. The centrifugal fan impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.

9. After the production is completed, all products are tested for running and vibration values for reliable operation.

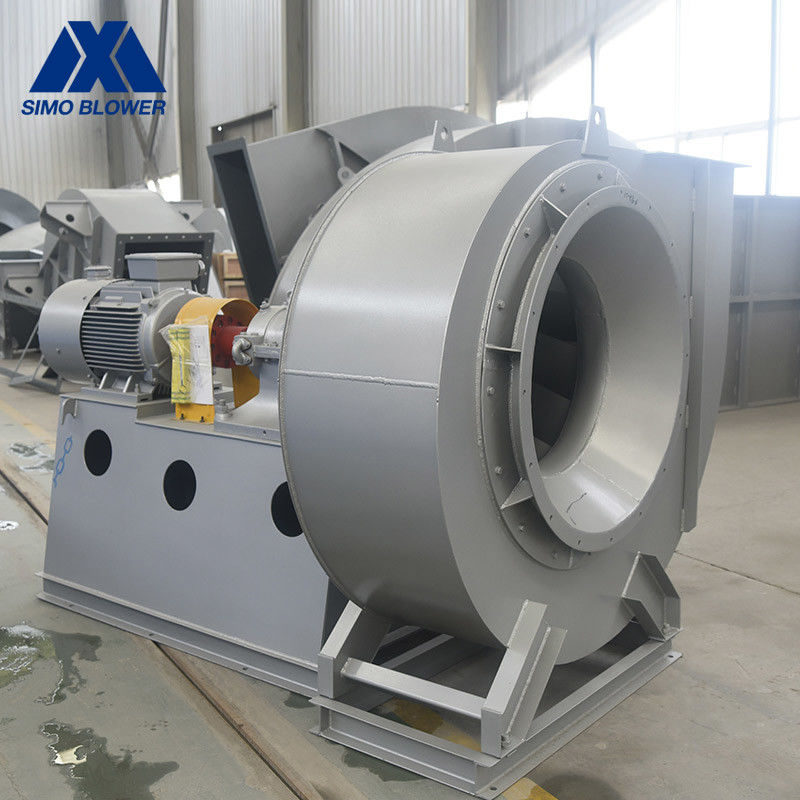

Heat Dissipation Forced Draught Fan In Boiler Centrifugal Exhaust Fan 0

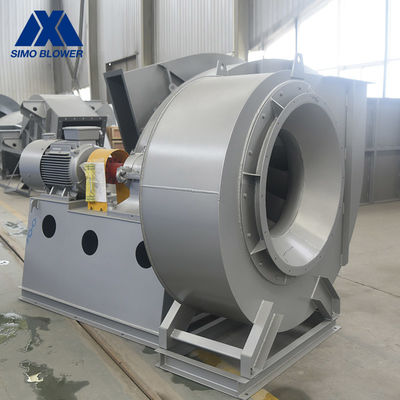

Heat Dissipation Forced Draught Fan In Boiler Centrifugal Exhaust Fan 1
