SWSI Low Pressure Centrifugal Fan Coal Injection Mine Ventilate

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-14
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Blade: Backward Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Electric Current Type: AC Mounting: Free Standing
System Type: Single Inlet, Overhang Type Medium: Clean Air/Dusty Air
High Light:

industrial blower fan

,

single inlet single width centrifugal fan

Coal Injection Mine Ventilate Low Pressure Heavy Duty Centrifugal Fan



Introduction



The 4-14 series centrifugal fan is suitable for indoor ventilation in general factories and large buildings.

It can be used to input gas as well as to output gas.

The gas delivered by the 4-14 series fan should be no more than 80 °C air and other gases that are not self-igniting and are not harmful to the human body and are not corrosive to steel materials. No viscous substances are allowed in the gas, and the dust and hard particles contained in the gas are not more than 150 mg/m3.



Technical data



PRODUCT PARAMETERS

Centrifugal Fan
Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Centrifugal Fan
Performance
Impeller diameter 800~1600 mm
Speed of mainshaft

580~1450

rpm
Pressure range 588~6678 Pa
Flow range 16011~161499 m3/h
Centrifugal Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Centrifugal Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Centrifugal Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.


Advantages and Features



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The motor selects the high-efficiency energy-saving motor of China's leading motor manufacturing enterprise (can also install the brand motor required by users), the quality is reliable, and the energy consumption is lower.

3. The V-belt drive makes your fan to operate at the optimum speed. Installation is simple and does not require the support of professional technicians.

4. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

5. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

6. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

7. After the production is completed, all products are tested for running and vibration values for reliable operation.

8. Installation is simple and does not require the support of professional technicians.

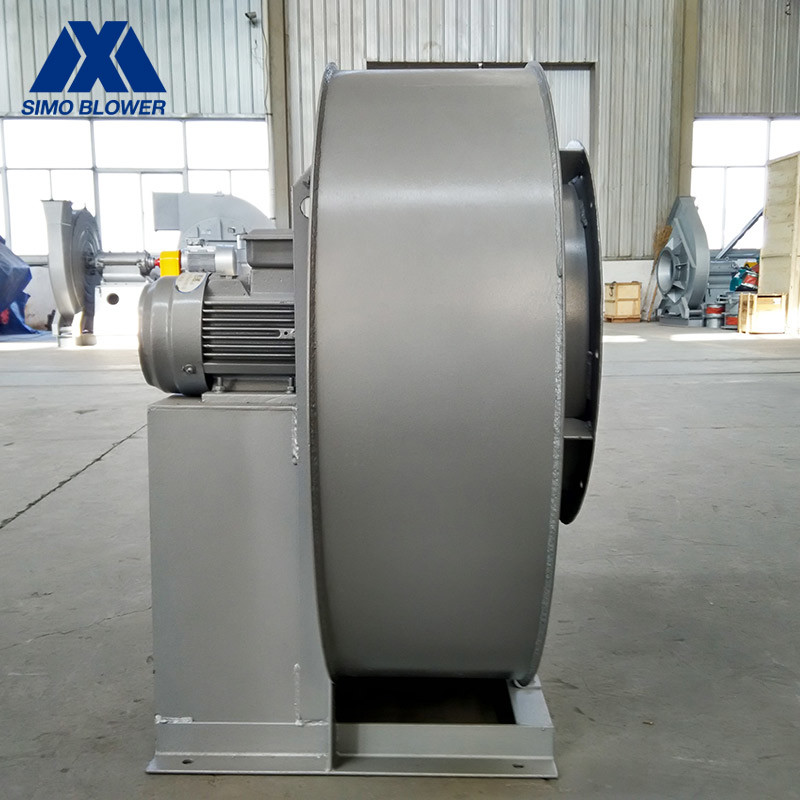

SWSI Low Pressure Centrifugal Fan Coal Injection Mine Ventilate 0

SWSI Low Pressure Centrifugal Fan Coal Injection Mine Ventilate 1
