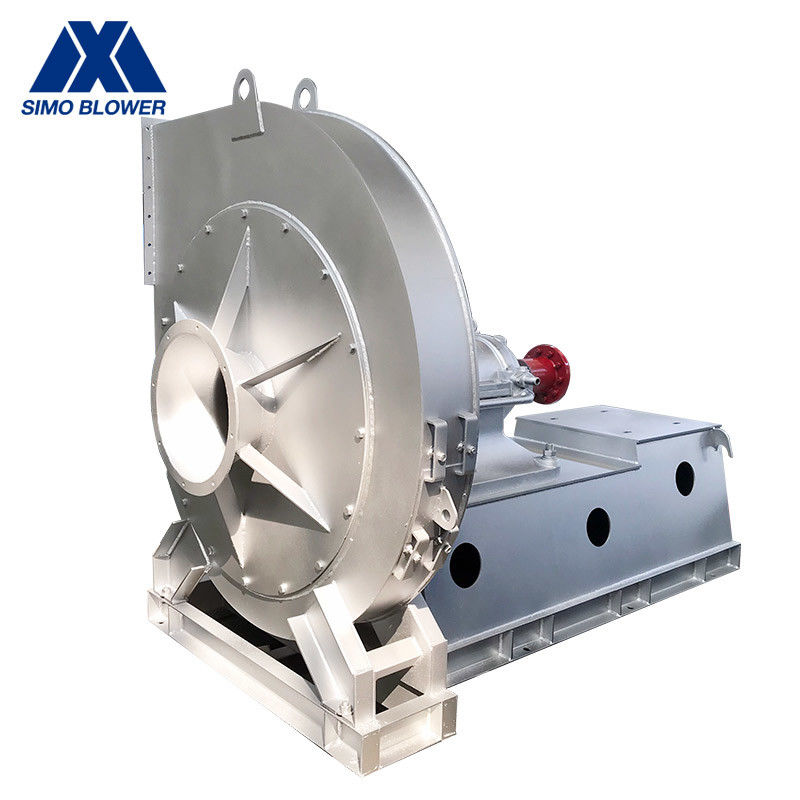

Single Inlet Heavy Duty Centrifugal Fans Wear Resistant Fluidized Bed Boiler
Introduction
The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.
The fan shaft power will not exceed the motor rated power regardless the operation point of the stable working range. Customers can use it without any worries.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-08 | 7.1D | 2900 | 10635～12427 | 12292～19360 | 75～110 |
| 8D | 1450～2900 | 3249～15955 | 8792～27696 | 18.5～200 | |
| 9D | 1450 | 4181～4869 | 12518～19717 | 30～45 | |
| 10D | 1450 | 5065～6143 | 17172～30052 | 55～75 | |
| 11.2D | 960～1450 | 3031～7747 | 15973～42221 | 30～132 | |
| 12.5D | 960～1450 | 3450～9713 | 22206～58695 | 45～250 | |
| 14D | 960～1450 | 4341～12285 | 31197～82463 | 75～400 | |
| 16D | 960～1450 | 5696～16250 | 46569～123090 | 185～850 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
-
-
