Introduction

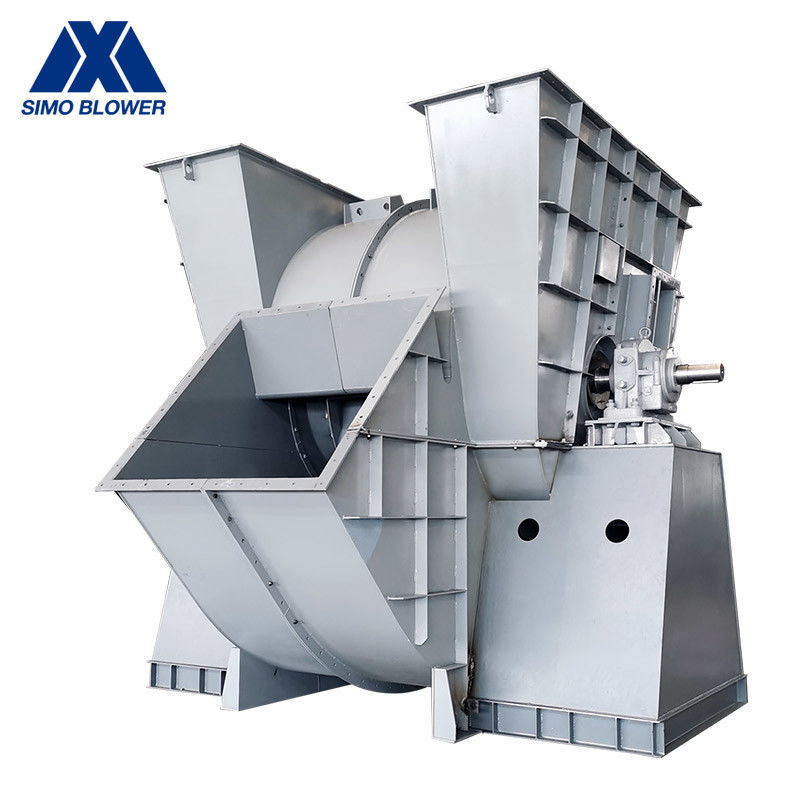

The 5-10 series ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.
Bearing seal can be lubricated. Service life is more than L10:80000 hours to ensure operation reliability and durability. Excellent aerodynamic performance, the maximum efficiency is up to 81%.
Technical data
| series | model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 5-10 | 4D | 2900 | 1606～1232 | 3007～5152 | 3 |
| 4.5D | 2880 | 2004～1538 | 4252～7284 | 5.5 | |
| 5D | 2900 | 2509～1925 | 5873～10062 | 7.5 | |
| 5.4D | 2900 | 2927～2246 | 7398～12675 | 11 | |
| 6D | 2500 | 2685～2060 | 8749～14989 | 15 | |
| 8D | 2000 | 3055～2344 | 16591～28424 | 30 | |
| 9D | 2000 | 3867～2967 | 23623～40471 | 45 | |
| 10D | 1600 | 3055～2344 | 25923～44413 | 45 |
FAQ
1,Q: What’s the MOQ of your company?
A: The MOQ is 1set.
2,Q: How long is the delivery time?
A : A:5-35 days.
3,Q : What’s your payment terms?
A : T/T, L/C, or Negotiable.
4,Q: What’s your warranty?
A: 1 year.
5,Q: Is your company factory or trade company?
A: We have our own factory, our type is factory +trade.
Application
Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.
-
