Industrial Heavy Duty Centrifugal Fans Sintering Machine High Wear Resistance

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Operating Temperature: -20 ~ 450 ℃ Installation Methods: Base Mount
Applications: Industrial/ Explosion Resistant Noise: Optional
After-sales Service Provided: Field Installation, Commissioning And Training Color: Customer's Requirement
High Light:

Centrifugal Fans Sintering Machine

,

Wear Resistant Centrifugal Fans

,

Industrial Heavy Duty Sintering Machine

Industrial Heavy Duty Centrifugal Fans Sintering Machine High Wear Resistance



Introduction



The 4-10 series large-flow centrifugal fan is the earliest used fan in China, and it is also the most commonly used fan.

The new shaft and coupling technology ensuring the accuracy during the assembly process while maintaining high reliability. Wide range of standard accessories available.





Detail introduction



Fan surface shall be polished and cleaned up to remove particulates, welding slag, burrs, sharp edge, iron, oil, then epoxy coating or high temperature coating for high temperature environments use, fan surface shall be free of sags, wrinkle, blisters, exposed metal or peeling after coating. It shall be no corrosion and rust at least 10 years in allowable working condition.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 2104~1400 16156~30993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 ~ 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 ~166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 ~ 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 ~ 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 ~ 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600


Product Features



Our products use advance FEA-aided design to enhance the reliability of structure.All our machines underwent vibration tests prior leaving the factory in order to achieve reliable and durable operation.



FAQ


1, What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2, How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3, Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

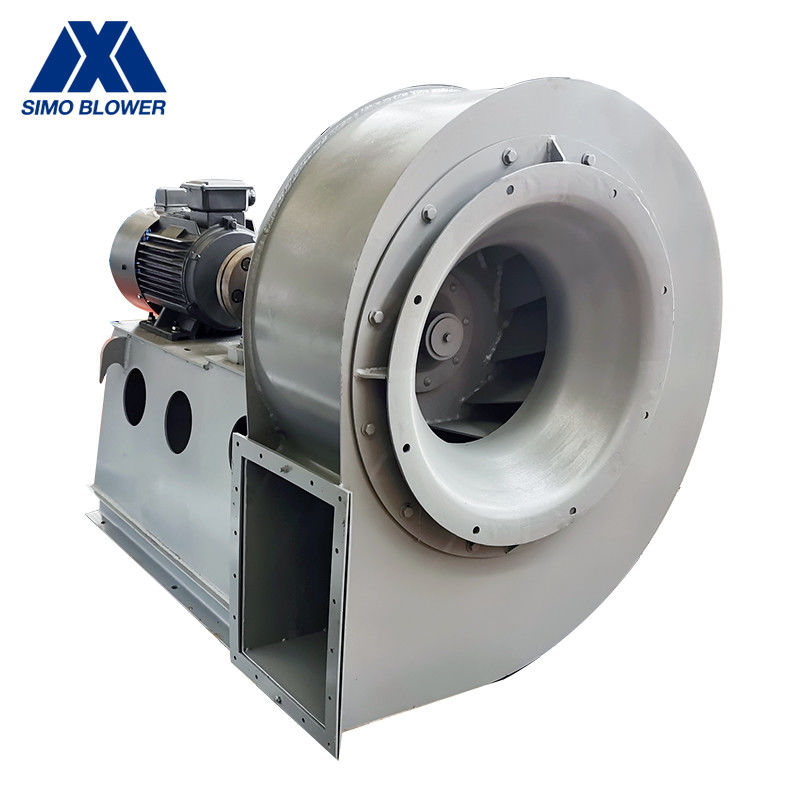

Industrial Heavy Duty Centrifugal Fans Sintering Machine High Wear Resistance 0

Industrial Heavy Duty Centrifugal Fans Sintering Machine High Wear Resistance 1

Industrial Heavy Duty Centrifugal Fans Sintering Machine High Wear Resistance 2
