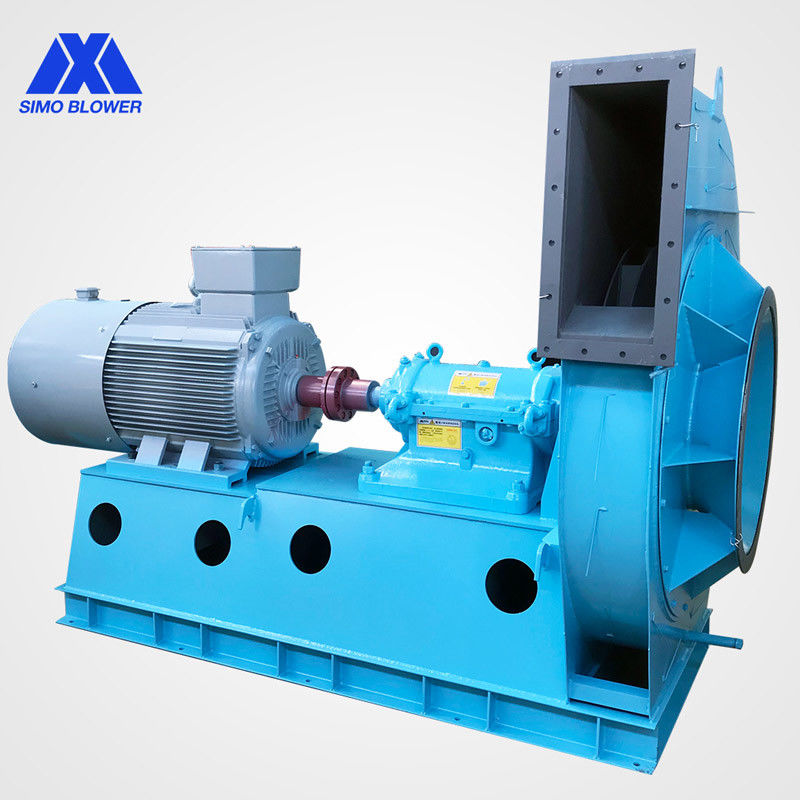

Efficient Energy Saving Heavy Duty Centrifugal Fans Thermal Power

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-11
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Operating Temperature: -20 ~ 450 ℃ Drive Type: Direct/ Belt
Static Pressure Range: 300~4,100 Pa Mounting Type: Base Mounted
Airflow Range: 588 ~ 84,706 CFM Applications: Industrial/ Explosion Resistant. Suitable For Extracting Fume And Vapour From Environment
High Light:

1450r/min Thermal Power Centrifugal Fans

,

Belt Drive Centrifugal Fans

,

300Pa Heavy Duty Centrifugal Fans

Efficient Energy-Saving Heavy Duty Centrifugal Fans Thermal Power



Introduction



The 6-11 series have the characteristics of high efficiency, flat performance curve, wear resistance, and work stability.

The plasma cutting, positioning fixture of high precision and all-welding technique contribute to the smoothness, high strength and great reliability of the steel blades that has uniform stress distribution for long-term high speed running.



Detail introduction



There exists a maximum shaft power for the motor. When the motor is selected based on the maximum shaft power, motor power and motor service factor, the shaft power can never exceed the rated motor power as the fan runs within the operating range. The user can be rest assured in this respect.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630



Product Features



The new shaft and coupling technology ensure accuracy during the assembly process and improve product reliability.
The fan shaft has been treated through hardening and tempering and finish turning processes. Its maximum load is 35% more than the highest speed to ensure the long-term safe and continuous operation.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

Efficient Energy Saving Heavy Duty Centrifugal Fans Thermal Power 0

Efficient Energy Saving Heavy Duty Centrifugal Fans Thermal Power 1

Efficient Energy Saving Heavy Duty Centrifugal Fans Thermal Power 2
