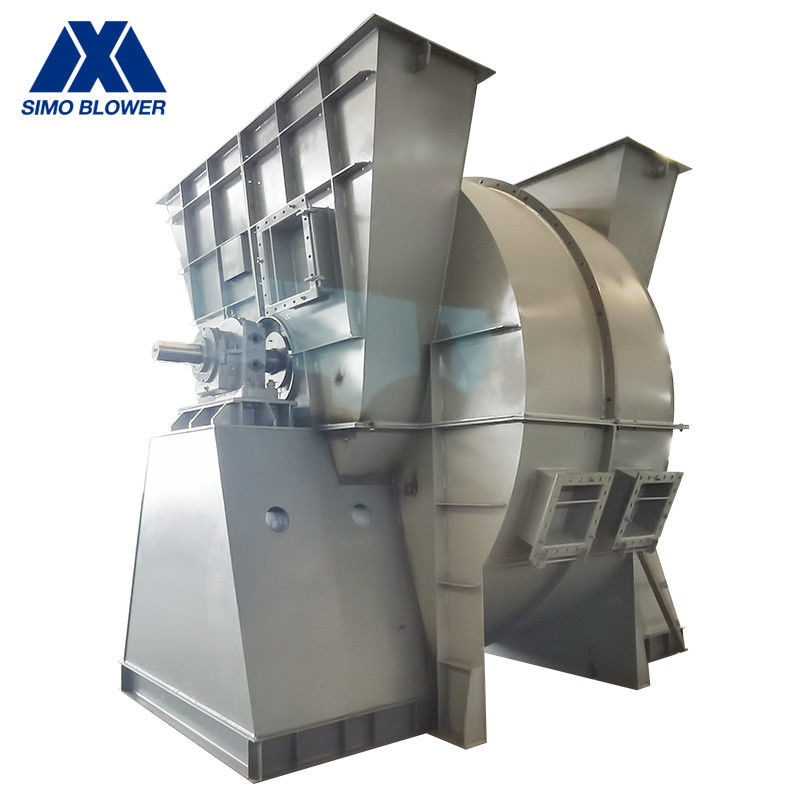

Coupling Driven Heavy Duty Centrifugal Fans Furnace Coke Oven

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Operating Temperature: -20 ~ 450 ℃ Drive Type: Direct/ Belt
Current Type: AC Motor: SIEMENS/ABB/By Your Demand
Airflow Range: 588 ~ 84,706 CFM Applications: Industrial/ Explosion Resistant. Suitable For Extracting Fume And Vapour From Environment
High Light:

Coupling Driven Centrifugal Fans

,

Furnace Coke Oven Centrifugal Fans

,

Oven Heavy Duty Centrifugal Fans

Coupling Driven Heavy Duty Centrifugal Fans Furnace Coke Oven



Introduction



6-08 series centrifugal fan is generally used for gas transportation of granular or powdery materials, and can be widely used to transport air and non-corrosive non-self-igniting, non-viscous substances.

Maximum load surpasses 35% of limit speed to ensure the long-term continuous operation of the security.The drive unit has a protective shield using eye-catching warning color to ensure personal safety.



Detail introduction



Optimized design repeatedly of CFD flow field simulation to ensure aerodynamic performance complied with the flow field characteristics.Excellent aerodynamic performance, the maximum efficiency is up to 81%.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-08 8F 1450 16382303 989023100 15~18.5
9F 1450 2074~3165 1410032900 22~30
10F 1450 2560~3908 1930045100 45~55
11F 960~1450 1358~4728 1700060000 22~90
12F 960~1450 1617~6383 3340077900 30~132
13F 960~1450 1896~6604 2810099100 45~200
14F 960~1450 2198~7659 35100124000 75~280
15F 730~1450 1460~8792 32800152000 45~400
16F 730~1450 1660~10005 39800185000 75~550
17F 730~960 1875~4950 47800147000 75~220
18F 730~960 2102~5550 74600174000 110~280
19F 730~960 2342~6184 66700205000 132~400
20F 730~960 2595~6851 77800239000 160~500
21F 580~960 1806~7554 90000276000 132~630
22F 580~960 2785~8291 119000167000 160~800
23.5F 580~960 2260~9460 18900~390000 200~1120
25F 580~960 2560~10707 121000467000 250~1600
26.5F 480~730 1969~6956 144000422000 220~900
28F 480~730 2198~7765 140000500000 250~1250
29.5F 480~730 2836~8620 164000583000 315~1600
31.5F 480~730 2783~9828 200000709000 500~2000


Product Features



The fan shaft power will not exceed the motor rated power regardless the operation point of the stable working range. Customers can use it without any worries.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

 A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
 A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
