Single Inlet Energy Saving Furnace Heavy Duty Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Feature: High Performance, High Efficiency Drivetrain: Direct/Coupling Driven/V-belt Driven
After-sales Service Provided: Field Installation, Commissioning And Training Blade: Forward
Type: Centrifugal Fan Noise: Optional
High Light:

single inlet heavy duty centrifugal fans

,

energy saving heavy duty centrifugal fans

,

furnace heavy duty centrifugal fans

Single Inlet Energy Saving Furnace Heavy Duty Centrifugal Fans



Detail introduction



The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

The blade placement angle is optimized, more wear-resistant and longer service life.

Bearing cooling method: according to gas temperature and operating environment conditions choose low-cost water-cooling method or oil-cooling method with good heat dissipation performance.

For extremely high temperature operating conditions, can also be installed with an electronic cooler, absolute protection of the reliable operation of the fan system.



Introduction Of Centrifugal Fan



1. Equipped with tapered sleeve embedded pulley, easy to disassemble.

2. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

3. The variable inlet damper can be used to flexibly adjust the pressure and flow of the fan during operation. The variable frequency motor can also be selected to adjust the pressure and flow of the fan by changing the speed.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-12 2.5A 2825 907680 5991252 0.75
2.8A 2825 1274984 10171760 0.75
5.4A 1420 1181906 36996337 3
6.3A 1440 16071233 587410064 5.5
6.5A 1440 17111313 645111053 5.5



Product Advantages



1. The impeller of centrifugal fan is designed to be backward inclined, which has no friction in operation, very low noise and is not easy to be stained with dust, so it is very convenient to maintain.

2. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.

3. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

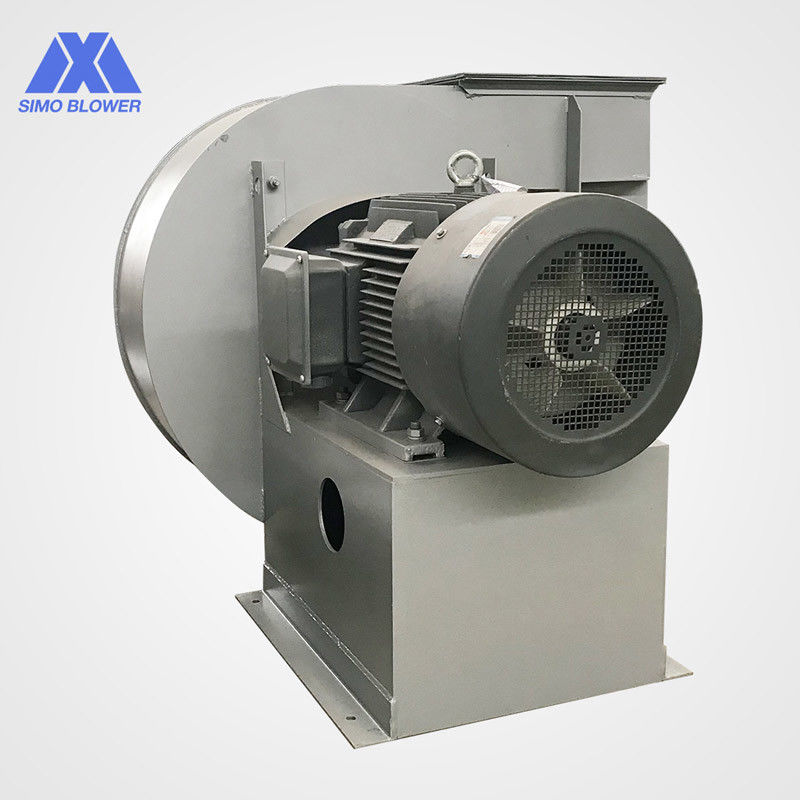

Single Inlet Energy Saving Furnace Heavy Duty Centrifugal Fans 0

Single Inlet Energy Saving Furnace Heavy Duty Centrifugal Fans 1

Single Inlet Energy Saving Furnace Heavy Duty Centrifugal Fans 2
