Single Suction Medium Pressure Cfb Boiler Heavy Duty Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Bearing: SKF/FAG/By Your Demand
Motor Type: Three Phase AC Motor Power Source: Three Phase AC Motor
Delivery Time: 30 Days Impeller Test: Ultrasonic Flaw Detection
High Light:

single suction heavy duty centrifugal fans

,

medium pressure heavy duty centrifugal fans

,

cfb boiler heavy duty centrifugal fans

Single Suction Medium Pressure CFB Boiler Heavy Duty Centrifugal Fans



Detail introduction



The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

Mainly circulating fluidized bed system, smoke exhaust, material drying, industrial dust collector / filtration system, flue gas desulfurization, flue gas denitrification, industrial boiler induced air, cement production line, industrial waste heat recovery device, mineral powder sintering ( sintering machine), Coke production (coking furnace), etc, is especially suitable for various harsh conditions such as high temperature, wear and corrosion.



Introduction Of Centrifugal Fan



1. The bearing housing uses labyrinth mechanical seal, unique anti-leakage design inside, vent hole at the top, and sealing grease at the joint, completely eliminating the possibility of oil leakage in the bearing hosing.

2. After annealed treatment, the internal stress of the structure generated during welding can be completely eliminated to ensure that the impeller will not creepage and crack.

3. The impeller is subjected to a high standard of dynamic balancing adjusting to ensure stable operation of the fan.



Technical data



Heavy Duty Fan

series

Heavy Duty Fan

model

Heavy Duty Fan

Rotation Speed
(r/min)

Heavy Duty Fan

Total Pressure
(Pa)

Heavy Duty Fan

Air Capacity
(m³/h)

Heavy Duty Fan

Power
(kW)

5-12 4C 25003550 7422221 20655564 2.25.5
5C 22403150 9642819 37729851 411
6.3C 20002800 12213545 673717516 7.522
8C 14002000 11003323 965625619 1130
10C 12501800 14194483 1545144634 2275
12.5C 10001400 21454234 2414367803 37110



Provide the required centrifugal fan parameters, SIMO Blower can be customized according to requirements, the supply speed is fast, we will quote you in real time, the price is favorable!



Product Advantages



1. The impeller of centrifugal fan is designed to be backward inclined, which has no friction in operation, very low noise and is not easy to be stained with dust, so it is very convenient to maintain.

2. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.

3. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

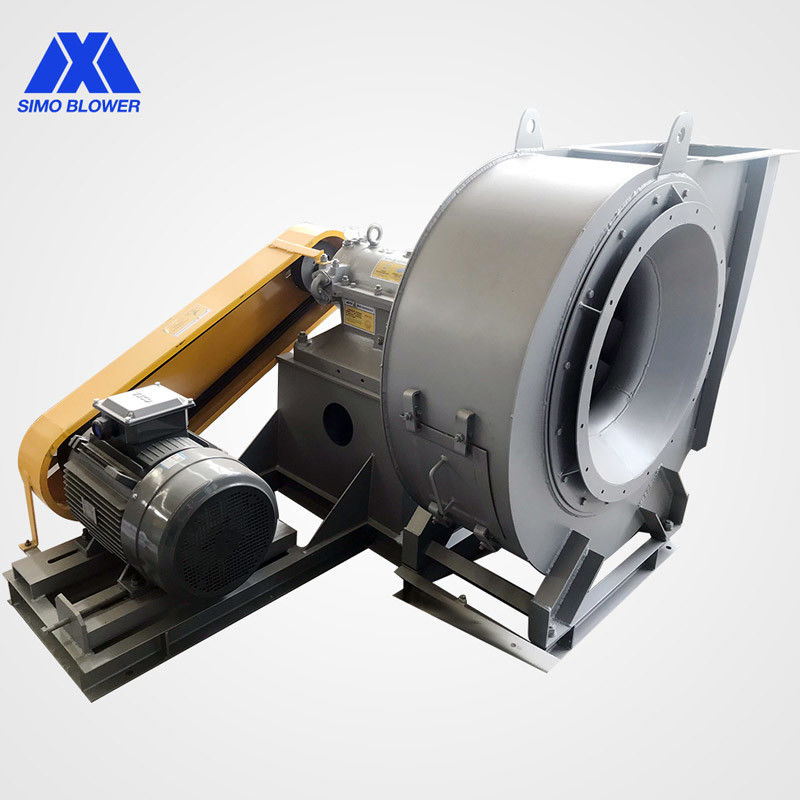

Single Suction Medium Pressure Cfb Boiler Heavy Duty Centrifugal Fans 0

Single Suction Medium Pressure Cfb Boiler Heavy Duty Centrifugal Fans 1

Single Suction Medium Pressure Cfb Boiler Heavy Duty Centrifugal Fans 2
