Carbon Steel Low Pressure Heavy Duty Centrifugal Fans Kilns Cooling

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Exhaust Ventilation Material: Alloy Steel
Main Shaft: High-strength Carbon Structural Steel Motor: By Your Demand
Warranty: 1 Year Noise: Optional
High Light:

Carbon Steel Heavy Duty Centrifugal Fans

,

Kilns Cooling Heavy Duty Centrifugal Fans

,

Kilns Cooling Low Pressure Centrifugal Fan

Carbon Steel Low Pressure Kilns Cooling Heavy Duty Centrifugal Fans



Introduction Of Centrifugal Fan



G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.

The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
4-10 8D 1450 21041400 1615630993 18.55
9D 960 ~ 1450 775 ~ 2668 15229 ~ 44128 11 ~ 37
10D 730 ~ 1450 553 ~ 3301 15886 ~ 60533 7.5 ~ 55
11D 730 ~ 1450 669 ~ 4003 21144 80570 11 ~ 90
12D 730 ~ 1450 797 ~ 4777 25661 ~ 104600 15 ~ 132
14D 730 ~ 1450 1086 ~ 6541 43591 166100 37 ~ 315
16D 580 ~ 960 895 ~ 3709 51699 ~ 164150 45 ~ 185
18D 580 ~ 960 1133 ~ 4710 73610 ~ 233730 75 ~ 280
20D 580 ~ 960 1400 ~ 5837 100970 320610 110 ~ 520
22D 480 ~ 960 1216 ~ 6865 116000 434000 140 ~ 850
25D 480 ~ 730 1579 ~ 5138 171000 484000 165 ~ 700
28D 375 ~ 730 1205 ~ 6400 187000 ~ 680000 320 ~ 1250
29.5D 596 ~ 745 3236 ~ 7218 348000 ~ 810000 800 ~ 1600



Product Advantages



1. The airflow channel and the impeller are optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

2. Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

3. The impeller is annealed to completely eliminate structural stresses generated during welding, ensuring that the impeller does not undergo creep and cracking.

4. After the production is completed, all products are tested for running and vibration values for reliable operation.

5. Installation is simple and does not require the support of professional technicians.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

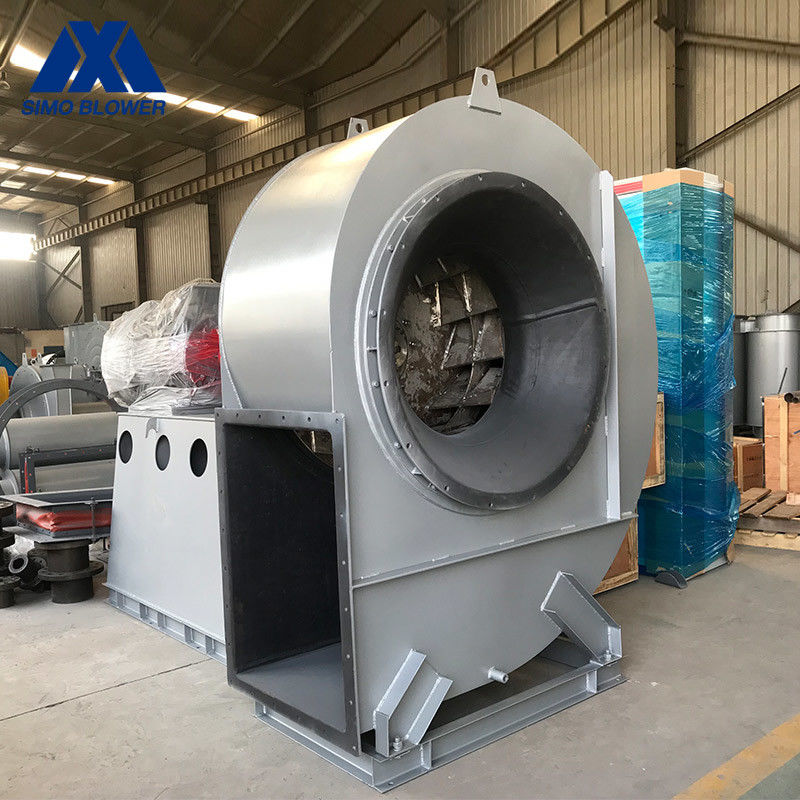

Carbon Steel Low Pressure Heavy Duty Centrifugal Fans Kilns Cooling 0

Carbon Steel Low Pressure Heavy Duty Centrifugal Fans Kilns Cooling 1

Carbon Steel Low Pressure Heavy Duty Centrifugal Fans Kilns Cooling 2
