|Place of Origin:||Henan China|
|Model Number:||SIMO Blower 4-10|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Export Wooden Case Packing, Steel pallet Packing|
|Delivery Time:||15-35 Days|
|Payment Terms:||T/T, L/C, Payment Term Is Negotiable|
|Supply Ability:||500 Sets Per Month|
|Application:||General Ventilation||Material:||Carbon Steel/Alloy Steel/Stainless Steel|
|Main Shaft:||High-strength Carbon Structural Steel||Motor:||SIEMENS/ABB/By Your Demand|
|Noise:||Optional||Impeller Support:||SWSI (Single Width, Single Inlet), Impeller Overhung|
16Mn Ventilation Blower Fan,
Single Suction Heavy Duty Centrifugal Fans,
16Mn centrifugal exhaust fan

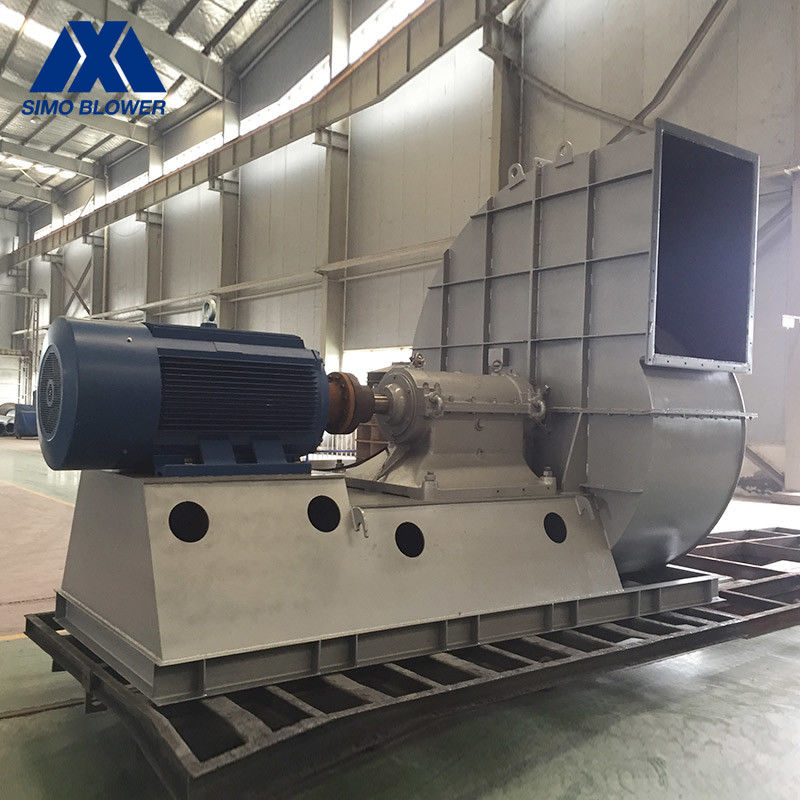

16Mn Single Suction Building Ventilation Heavy Duty Centrifugal Fans
Introduction Of Centrifugal Fan
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
When the pressure requirement is met, a large gas flow can be output, and the noise is very low.
|9D||960 ~ 1450||775 ~ 2668||15229 ~ 44128||11 ~ 37|
|10D||730 ~ 1450||553 ~ 3301||15886 ~ 60533||7.5 ~ 55|
|11D||730 ~ 1450||669 ~ 4003||21144 ～ 80570||11 ~ 90|
|12D||730 ~ 1450||797 ~ 4777||25661 ~ 104600||15 ~ 132|
|14D||730 ~ 1450||1086 ~ 6541||43591 ～166100||37 ~ 315|
|16D||580 ~ 960||895 ~ 3709||51699 ~ 164150||45 ~ 185|
|18D||580 ~ 960||1133 ~ 4710||73610 ~ 233730||75 ~ 280|
|20D||580 ~ 960||1400 ~ 5837||100970 ～ 320610||110 ~ 520|
|22D||480 ~ 960||1216 ~ 6865||116000 ～ 434000||140 ~ 850|
|25D||480 ~ 730||1579 ~ 5138||171000 ～ 484000||165 ~ 700|
|28D||375 ~ 730||1205 ~ 6400||187000 ~ 680000||320 ~ 1250|
|29.5D||596 ~ 745||3236 ~ 7218||348000 ~ 810000||800 ~ 1600|
Can be widely used in factories, mines, stadiums, theaters, basements, large hotels, restaurants, shopping malls and large buildings for ventilation, cooling and dust removal, etc, it can also be used as a gas cycle with other types of mechanical equipment, the primary transport medium is air and other gases that are not self-igniting, non-self-destructing, harmless to the human body, and non-corrosive to steel.
It can also be made into explosion-proof and flame-retardant type according to the requirements of use. It is suitable for occasions with flammable, explosive and corrosive gases.
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
