HG785 Alloyed Steel High Pressure Sintering Machine Heavy Duty Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-08
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Bearing: SKF/FAG/By Your Demand
Voltage: 380V/415V/440V/660V/6KV/10KV Lubrication: Oil Bath Lubrication
Power Source: Three Phase AC Motor Impeller Test: Ultrasonic Flaw Detection
High Light:

Sintering Machine Heavy Duty Centrifugal Fans

,

HG785 Heavy Duty Centrifugal Fans

,

HG785 High Pressure Centrifugal Fans

HG785 Alloyed Steel High Pressure Sintering Machine Heavy Duty Centrifugal Fans



Detail introduction



The 9-08 series high pressure fan is generally used for forging furnace and high pressure forced ventilation, and can be widely used to transport materials, transport air and non-corrosive, non-self-igniting, non-viscous substances gas.

The temperature of the medium generally does not exceed 50 ° C (maximum not more than 80 ° C). The dust and hard particles contained in the medium are not more than 150 mg/m3.



Feature Of Centrifugal Fan



1.The fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.

2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.

3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-08 7.1D 2900 1063512427 1229219360 75110
8D 14502900 324915955 879227696 18.5200
9D 1450 41814869 1251819717 3045
10D 1450 50656143 1717230052 5575
11.2D 9601450 30317747 1597342221 30132
12.5D 9601450 34509713 2220658695 45250
14D 9601450 434112285 3119782463 75400
16D 9601450 569616250 46569123090 185850



Provide the required centrifugal fan parameters, SIMO Blower can be customized according to requirements, the supply speed is fast, we will quote you in real time, the price is favorable!



Product Advantages



For flammable and explosive gas transportation, the impeller can be processed with aluminum alloy to prevent sparks during operation.

The fan with explosion-proof motor, and its performance parameters are the same as those ordinary motors.

The fan has high efficiency, low noise, flat performance curve and wide area of high efficiency.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

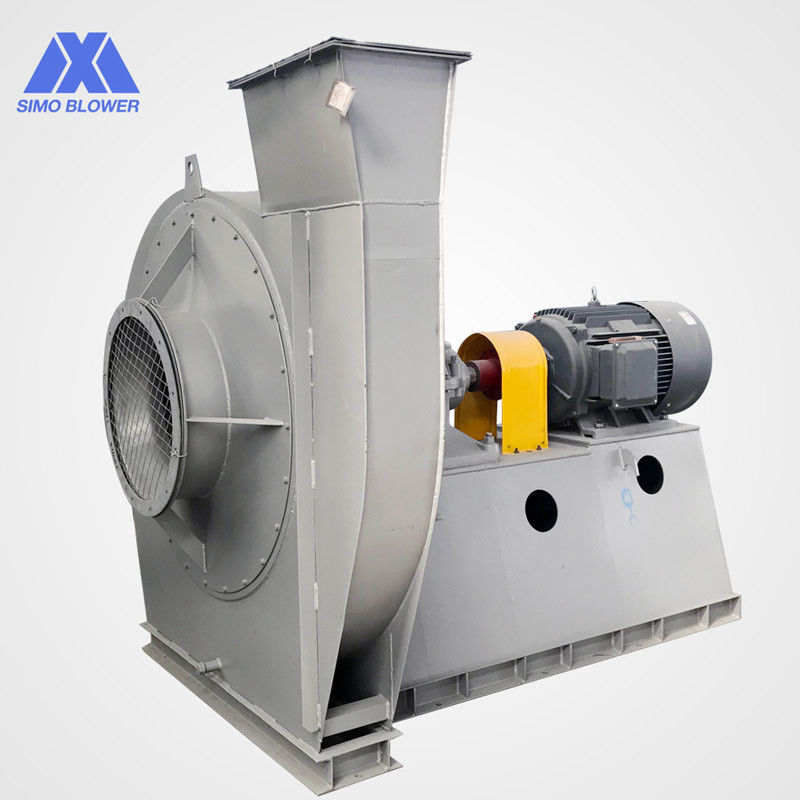

HG785 Alloyed Steel High Pressure Sintering Machine Heavy Duty Centrifugal Fans 0
