Impeller Hub Ventilate Q235 Heavy Duty Centrifugal Fans

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Bearing: SKF/FAG/By Your Demand
Main Shaft: High-strength Carbon Structural Steel Lubrication: Oil Bath Lubrication
Medium: Clean Air/Dusty Air Impeller Test: Ultrasonic Flaw Detection
High Light:

Q235 Heavy Duty Centrifugal Fans

,

Impeller Heavy Duty Centrifugal Fans

,

Q235 commercial centrifugal fans

Q235 Carbon Structural Steel Impeller Hub Ventilate Heavy Duty Fan



Detail introduction



Mainly to meet the dust emission requirements of the electric arc furnace exhaust gas purification equipment, improve the workshop environment, to ensure that the dust concentration in the electric furnace working area meets the “sanitary standards for industrial enterprises”, and can also be used in various occasions with the same functional requirements.



The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.



It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.



Mainly circulating fluidized bed system, smoke exhaust, material drying, industrial dust collector / filtration system, flue gas desulfurization, flue gas denitrification, industrial boiler induced air, cement production line, industrial waste heat recovery device, mineral powder sintering ( sintering machine), Coke production (coking furnace), etc, is especially suitable for various harsh conditions such as high temperature, wear and corrosion.



Introduction Of Centrifugal Fan



Centrifugal fan is a kind of machinery that relies on input mechanical energy to increase gas pressure and discharge gas.



The basic composition of a centrifugal fan: a rotating impeller and a volute casing. The function of the rotating impeller is to obtain energy from the air; the function of the volute is to collect air and effectively convert the dynamic pressure of the air into static pressure.



When the centrifugal fan is energized and rotated, it drives the impeller to rotate, driving the gas to continuously flow in and out, and generate air volume and voltage. With the shape of the impeller blades, the air volume and pressure generated by the centrifugal fan are also different.



All impellers are produced in moulds and are verified by a precision dynamic balance machine at high speed. They have the advantages of small size, high efficiency, large air volume, low vibration, low noise, superior performance, and convenient installation and debugging.



SIMO Blower specializes in manufacturing centrifugal fans with high quality and affordable prices, which are loved by new and old customers.



Technical data



Heavy Duty Fan

series

Heavy Duty Fan

model

Heavy Duty Fan

Rotation Speed
(r/min)

Heavy Duty Fan

Total Pressure
(Pa)

Heavy Duty Fan

Air Capacity
(m³/h)

Heavy Duty Fan

Power
(kW)

5-12 4C 25003550 7422221 20655564 2.25.5
5C 22403150 9642819 37729851 411
6.3C 20002800 12213545 673717516 7.522
8C 14002000 11003323 965625619 1130
10C 12501800 14194483 1545144634 2275
12.5C 10001400 21454234 2414367803 37110



Provide the required centrifugal fan parameters, SIMO Blower can be customized according to requirements, the supply speed is fast, we will quote you in real time, the price is favorable!



Product Advantages



1. The impeller of centrifugal fan is designed to be backward inclined, which has no friction in operation, very low noise and is not easy to be stained with dust, so it is very convenient to maintain.



2. Good ventilation effect: Centrifugal fan is especially suitable for pipe exhaust or air supply, and can be used in places where there is no corrosive, flammable and explosive gas, which can achieve good ventilation effect.



3. Strong corrosion resistance: the surface of centrifugal fan is sprayed, which has strong oxidation resistance and is not easy to rust. The casing and impeller are made of high-quality steel plates, which makes the centrifugal fan very strong and durable.



4. SIMO Blower uses high-quality raw materials, thick materials, or stainless steel plates,all formed at one time.





FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

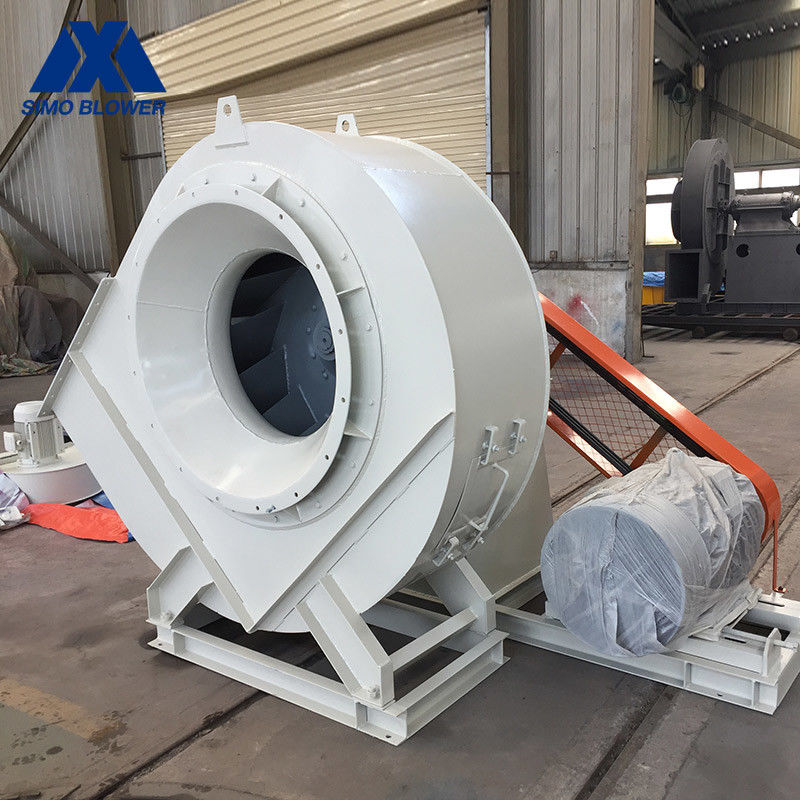

Impeller Hub Ventilate Q235 Heavy Duty Centrifugal Fans 0

Impeller Hub Ventilate Q235 Heavy Duty Centrifugal Fans 1

Impeller Hub Ventilate Q235 Heavy Duty Centrifugal Fans 2
