Heavy Duty Centrifugal Fan Double Inlet Centrifugal Blower 3 Phase

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Drivetrain: Direct/Coupling Driven/V-belt Driven Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
Noise: Optional Power Source: Three Phase AC Motor
High Light:

direct driven centrifugal fan

,

single inlet centrifugal fan

Heavy Duty Double Inlet Large Capacity Flue Gas Centrifugal Blower Fan



Introduction



The Heavy Duty Double Inlet Large Capacity Flue Gas Centrifugal Blower Fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.

This series of Flue Gas Centrifugal Blower Fan can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.

The Heavy Duty Double Inlet Large Capacity Flue Gas Centrifugal Blower Fan can be used for more than four years when the concentration of impurities is less than 200 mg/m3.

If it contains a lot of impurities, it also can be used, but it will shorten the service life.

The maximum operating temperature of the Flue Gas Centrifugal Blower Fan must not exceed 250°C.

The performance of the fan is expressed by parameters such as fan flow, full pressure, spindle speed, shaft power and efficiency.



Technical data



series model

Centrifugal Blower Fan

Rotation Speed
(r/min)

Centrifugal Blower Fan

Total Pressure
(Pa)

Centrifugal Blower Fan

Air Capacity
(m³/h)

Power
(kW)

5-06

Centrifugal Blower Fan

8F 1450 16382303 989023100 15~18.5
9F 1450 2074~3165 1410032900 22~30
10F 1450 2560~3908 1930045100 45~55
11F 960~1450 1358~4728 1700060000 22~90
12F 960~1450 1617~6383 3340077900 30~132
13F 960~1450 1896~6604 2810099100 45~200
14F 960~1450 2198~7659 35100124000 75~280
15F 730~1450 1460~8792 32800152000 45~400
16F 730~1450 1660~10005 39800185000 75~550
17F 730~960 1875~4950 47800147000 75~220
18F 730~960 2102~5550 74600174000 110~280
19F 730~960 2342~6184 66700205000 132~400
20F 730~960 2595~6851 77800239000 160~500
21F 580~960 1806~7554 90000276000 132~630
22F 580~960 2785~8291 119000167000 160~800
23.5F 580~960 2260~9460 18900~390000 200~1120
25F 580~960 2560~10707 121000467000 250~1600
26.5F 480~730 1969~6956 144000422000 220~900
28F 480~730 2198~7765 140000500000 250~1250
29.5F 480~730 2836~8620 164000583000 315~1600
31.5F 480~730 2783~9828 200000709000 500~2000


FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans ?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service ?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications ?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

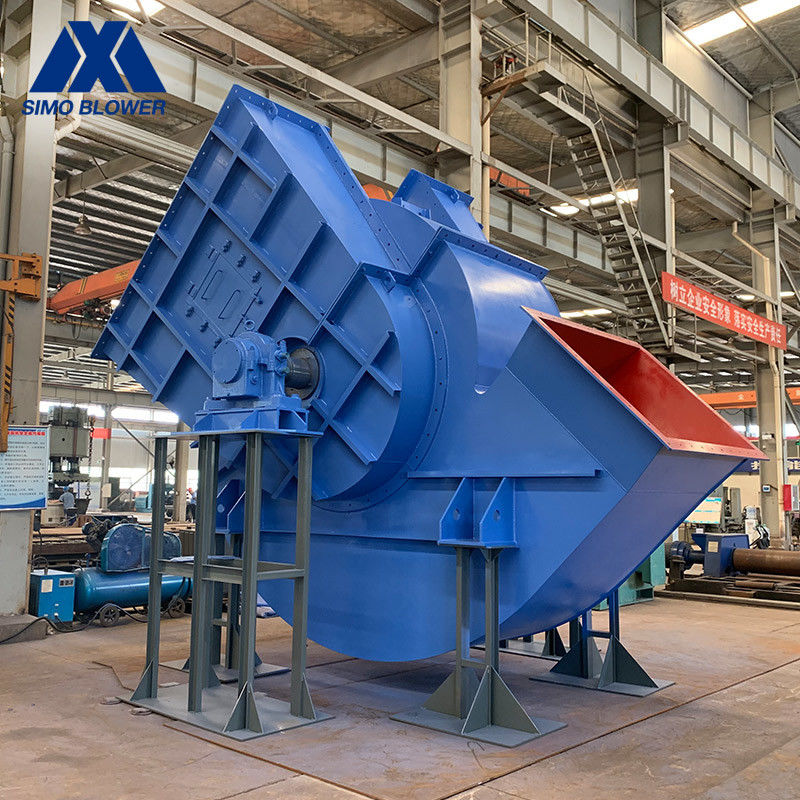

Heavy Duty Centrifugal Fan Double Inlet Centrifugal Blower 3 Phase 0
