SS SIMO Blower Heavy Duty Centrifugal Fans Primary Air Fan In Boiler

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Category: Blower Drivetrain: Coupling Driven
Medium: Clean Air/Dusty Air Power Source: Three Phase AC Motor
Material: Carbon Steel/Alloy Steel/Stainless Steel Mounting: Free Standing
High Light:

industrial blower fan

,

single inlet single width centrifugal fan

Industrial Boiler Primary Air Stainless Steel Heavy Duty Centrifugal Fan



Introduction



The 4-09 series large-flow centrifugal fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

Industrial Boiler Primary Air Stainless Steel Heavy Duty Centrifugal Fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



Technical data



PRODUCT PARAMETERS
Cengtrifugal Fan Application
Temperature Normal temperature air, Hot air
Air composition Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Cengtrifugal Fan Performance
Impeller diameter 280~600 mm
Speed of mainshaft

960~2900

rpm
Pressure range 247~3187 Pa
Flow range 844~15456 m3/h
Cengtrifugal Fan Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain V-Belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Cengtrifugal Fan System
Configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Cengtrifugal Fan Optional
Components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc


Advantages and Features



1. When the pressure requirement is met, a large gas flow can be output, and the noise is very low.

2. The fan speed can be flexibly set by matching different diameters of belt pulley to make the fan run at the highest efficiency point and reduce energy waste.

3. Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.

4. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

5. In the case of a monolithic bracket, the installation is very simple and requires little support from a professional technician.

6. After the production is completed, all products are tested for running and vibration values for reliable operation.

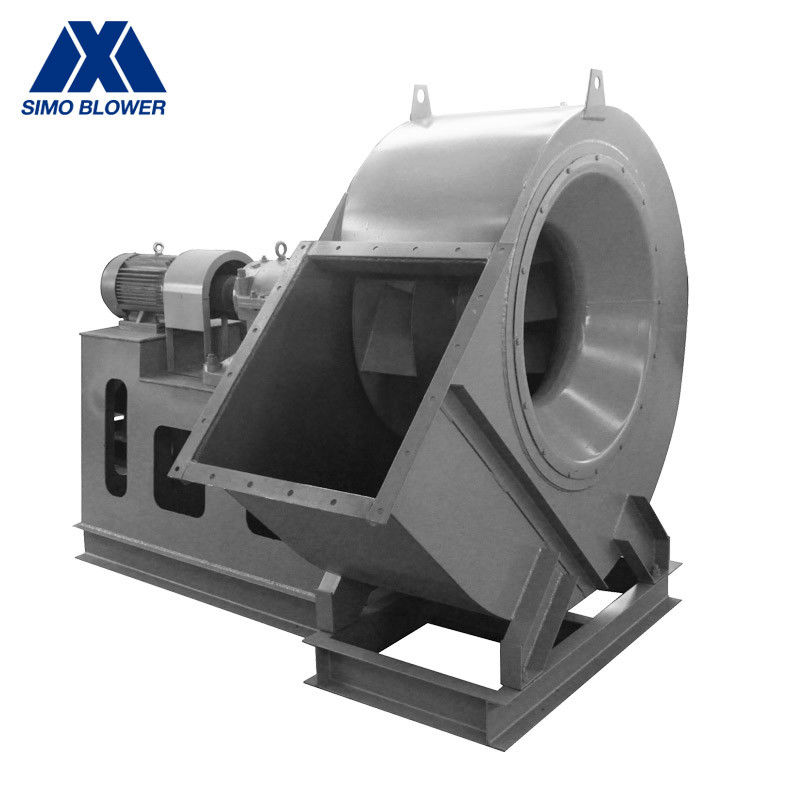

SS SIMO Blower Heavy Duty Centrifugal Fans Primary Air Fan In Boiler 0
