Energy Saving Coal Mill Boiler Backward Curved Centrifugal Fan Large Capacity

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: General Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Motor Type: Three Phase AC Motor Bearing Type: Rolling Bearing
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Power Source: Three Phase AC Motor
High Light:

Boiler Backward Curved Centrifugal Fan

,

alloyed Backward Curved Centrifugal Fan

,

Large Capacity Boiler Fan

Energy Saving Large Capacity Coal Mill Backward Curved Boiler Fan



Introduction Of Centrifugal Fan



The 5-12 series centrifugal fan is an enhanced version of the 5-11 series medium pressure centrifugal fan.

It has a larger output flow than the 5-11 series. It is also used to transport a variety of common gases and hard materials in the industrial field, the application object is exactly the same as 5-11 series fan.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-12 4D 25003550 7422221 20655564 2.25.5
5D 22403150 9642819 37729851 411
6.3D 20002800 12213545 673717516 7.522
8D 14002000 11003323 965625619 1130
10D 12501800 14194483 1545144634 2275
12.5D 10001400 21454234 2414367803 37110


Product Advantages



1. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

2. Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.

3. The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.

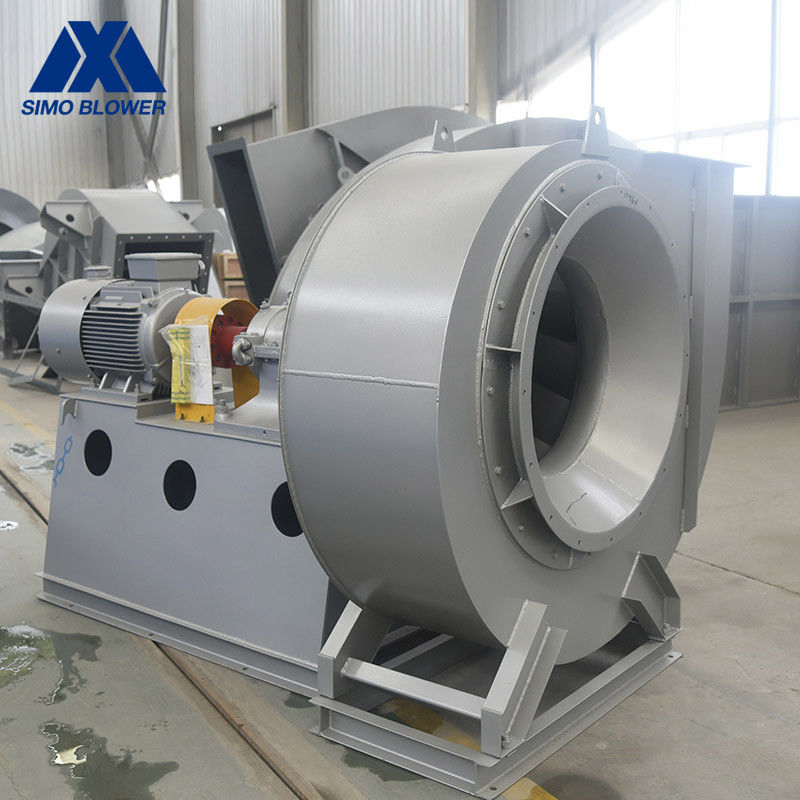

Energy Saving Coal Mill Boiler Backward Curved Centrifugal Fan Large Capacity 0

Energy Saving Coal Mill Boiler Backward Curved Centrifugal Fan Large Capacity 1

Energy Saving Coal Mill Boiler Backward Curved Centrifugal Fan Large Capacity 2
