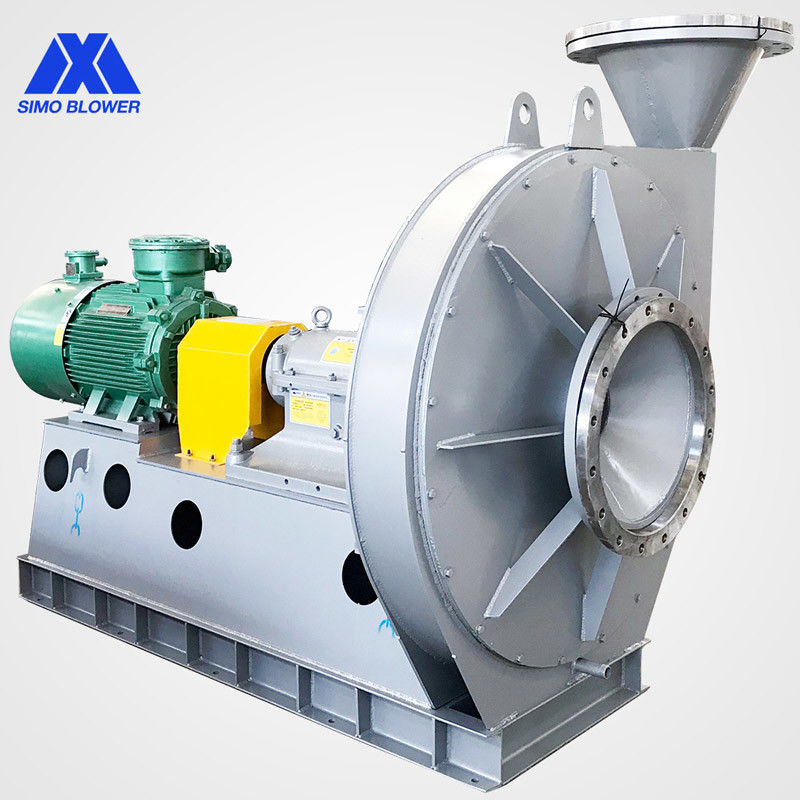

AC Motor Single Inlet Abrasion Resistant Industrial Kilns Boiler Fan
Introduction
The 8-17 series high-pressure small-flow fan is designed for applications requiring high pressure.
Under the premise of ensuring a certain amount of air, the full pressure can reach the high pressure requirement.
It is mainly used for blasting furnace blast and other forced air supply, and can also be used for tunnels to exhaust or supply air through hard pipes.
Technical data
| series |
model |
Rotation Speed
(r/min) |
Total Pressure
(Pa) |
Air Capacity
(m³/h) |
Power
(kW) |
| 8-17 |
7.1D |
2900 |
10728～11973 |
768～2919 |
11～18.5 |
| 8D |
2930 |
14297～15680 |
1110～4219 |
22～37 |
| 9D |
2930 |
18308～20250 |
1591～6019 |
37～55 |
Product Features
1. The bearing housing is reserved for the installation position of the temperature and vibration sensors, and the fan operation monitoring device can be conveniently installed.
2. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
3. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.
FAQ
1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.
2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.
3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.
4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.
5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.
6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
