16Mn Single Inlet High Temperature Materials Drying Boiler Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Mounting: Free Standing
Main Shaft: High-strength Carbon Structural Steel Color: Customer's Requirement
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Power Source: Three Phase AC Motor
High Light:

Coupling Driving Backward Curved Centrifugal Fan

,

CFB Boiler Backward Curved Centrifugal Fan

,

CFB Boiler backward curved blower

16Mn Single Inlet High Temperature Materials Drying Boiler Blower Fan

Introduction

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.
It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.
If it contains a lot of impurities, it also can be used, but it will shorten the service life.
The maximum operating temperature of the induced draft fan must not exceed 250°C.

Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-06 8D 1450 25921989 1202820607 15
10D 1450 40513108 2349340249 55
11D 1450 30362329 3126953571 55
12.4D 1450 38582960 4479276740 90


Product Features

1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
3. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.



FAQ

1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.


2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.


3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

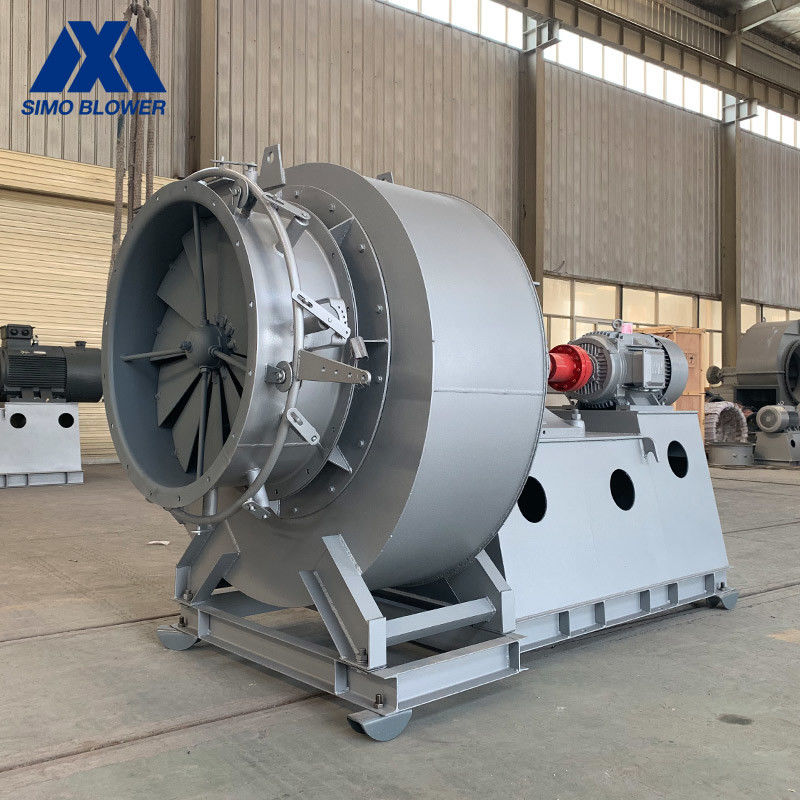

16Mn Single Inlet High Temperature Materials Drying Boiler Blower Fan 0

16Mn Single Inlet High Temperature Materials Drying Boiler Blower Fan 1
