Heavy Duty Long Life Medium Pressure Centrifugal Boiler Blower Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-06
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Impeller: Dynamic Balanced
System Type: Single Inlet, Overhang Type Electric Current Type: AC
Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung Material: Carbon Steel/Alloy Steel/Stainless Steel
High Light:

Medium Pressure Boiler Blower Fan

,

SWSI Boiler Blower Fan

,

SWSI induced draft fan in boiler

Heavy Duty Long Life Medium Pressure Centrifugal Boiler Blower Fan

Introduction


The 5-06 series fan can be used in the feeding system of 2-670t/h steam boiler in thermal power plants, it can also meet the requirements of the high-pressure head performance parameters of the fluidized bed furnace.
This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The blower delivers air, and the induced draft fan delivers flue gas or gas containing foreign particles.
It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.
If it contains a lot of impurities, it also can be used, but it will shorten the service life.

Technical data


series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
5-06 8D 1450 25921989 1202820607 15
10D 1450 40513108 2349340249 55
11D 1450 30362329 3126953571 55
12.4D 1450 38582960 4479276740 90


Product Features

1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
3. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
FAQ

1.Q: What parameters need to be provided when you design the industrial centrifugal fans?
A: Air flow rate(m3/h), Total pressure(Pa) or Static pressure(Pa), Inlet temperature(°C), Voltage and frequency on the working site.


2. Q:What is your delivery time?
A:15-35workdays, depending on the model of the fan.


3.Q:Are you manufacturer or trading company?
A:We are the professional manufacturer of centrifugal fans , over 65 years production experience and sales experience.


4.Q:What's your MOQ?
A:The MOQ is 1set,but larger quantity, lower price.


5.Q: What’s your warranty?
A: 12 months after arrival of the goods on site.


6.Q:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.

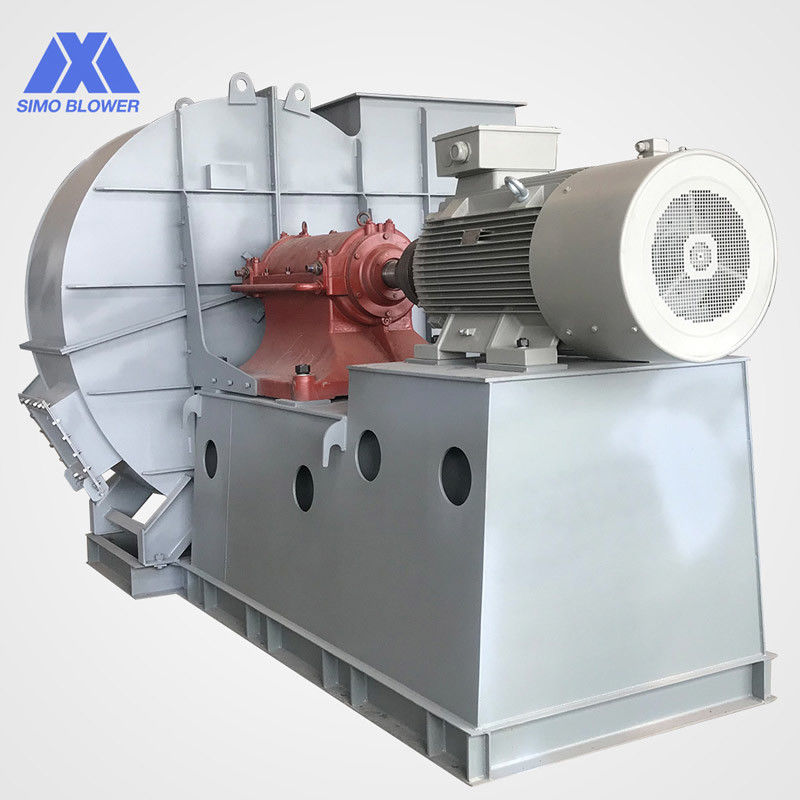

Heavy Duty Long Life Medium Pressure Centrifugal Boiler Blower Fan 0

Heavy Duty Long Life Medium Pressure Centrifugal Boiler Blower Fan 1
