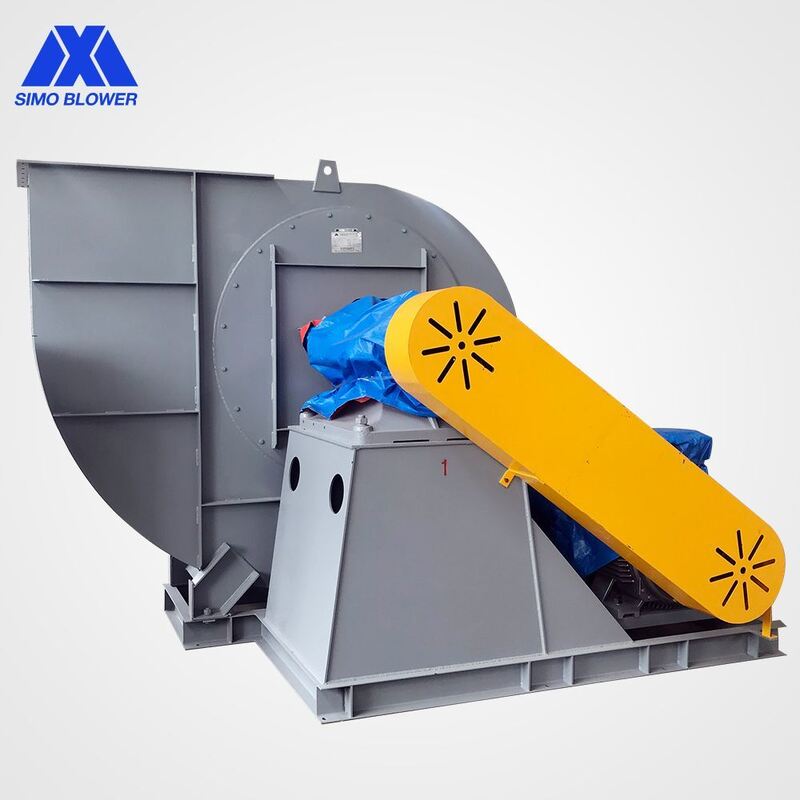

70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower
70kw Good Performance High Quality Boiler Centrifugal Blower Fan/Exhaust Fan/ Blower
Brand Name
SIMO
Product Model
SIMO Blower 5-55
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
Negotiable
Payment Method
T/T, L/C, Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:
70kw boiler centrifugal blower fan
,high performance boiler exhaust fan
,industrial boiler blower with warranty
Model NO:
5-55
Name:
Boiler Induced Draft Fan
Origin:
China
Voltage:
380V/415V/440V/660V/6KV/10KV
Power Source:
Three Phase AC Motor
Bearing Type:
Rolling Bearing
OEM Service:
Provide
Impeller Testing:
Dynamic Blancing Adjusting
Mounting:
Free Standing
Warranty:
1 Year
Product Description
Detailed Specifications And Features
70kw Good Performance High Quality Boiler Centrifugal Blower Fan/exhaust fan/ blower
The 5-10 series ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.
In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
Pursue excellent quality, make perfect product!
SIMO BLOWER are mainly centrifugal fans and axial flow fans, covering more than 30 series and more than 2,000 specifications, which are widely used in electric power, metallurgy, building materials, coal, petrochemical, industrial kilns and other fields.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
| 70KW Good performance high quality centrifugal blower fan | |||
| Performance | Pressure range | 1232~3867 | Pa |
| Air flow range | 3007-44413 | m3/h | |
| Impeller diameter | 400~2800 | mm | |
| Speed | 580~2900 | rpm | |
| Material | 15kw centrifugal blower case | Q235, Q345, stainless steel | Design as special |
| 15kw centrifugal blower shaft | 45# steel, Q304, SS304,SS316L | ||
| 15kw centrifugal blower impeller | Q304, 12Cr1Mov,15Crmov, 15MnV | ||
| Medium | 10---120 | Dustiness<80 g/m3 | incombustible |
| Motor | Siemens, ABB, WN, SIMO, LA | IP 54,55,56 | 3 phase |
| Optional components |
System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank. |
||
SIMO BLOWER are mainly centrifugal fans and axial flow fans, covering more than 30 series and more than 2,000 specifications, which are widely used in electric power, metallurgy, building materials, coal, petrochemical, industrial kilns and other fields.
