1X30MW Biomass Power Generation Boiler Primary Fan

Name: 1X30MW Biomass Power Generation Boiler Primary Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 7-41
Price: 4,000.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 7-41

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

Negotiable

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

1X30MW biomass boiler primary fan

biomass power generation boiler fan

industrial boiler fan with warranty

Model NO: 7-41

Specification: 2021x2475x1931

Origin: China

Voltage: 380V/415V/440V/660V/6KV/10KV

Power Source: Three Phase AC Motor

Bearing Type: Rolling Bearing

OEM Service: Provide

Name: Desulfurization Centrifugal Fan

Impeller Testing: Dynamic Blancing Adjusting

Product Description

Detailed Specifications And Features

1X30MW biomass power generation supporting boiler primary fan

Product Description

As a professional industrial fan manufacturer with 70 years of experience, we provide high-performance primary fans specifically designed for 1×30MW biomass power generation boiler systems. Engineered to meet the unique demands of biomass combustion, this fan ensures stable and efficient air supply for optimal boiler operation.

Constructed with wear-resistant and anti-corrosion materials, the fan effectively handles the abrasive and corrosive elements present in biomass flue gases. Its robust design incorporates dynamically balanced impellers and an aerodynamically optimized housing, delivering reliable performance while minimizing energy consumption and noise levels.

Customizable to match specific boiler parameters and operational requirements, this primary fan supports sustainable power generation by enhancing combustion efficiency, reducing carbon emissions, and lowering operating costs. Ideal for biomass power plants, it offers a durable and efficient solution for supporting clean energy production.

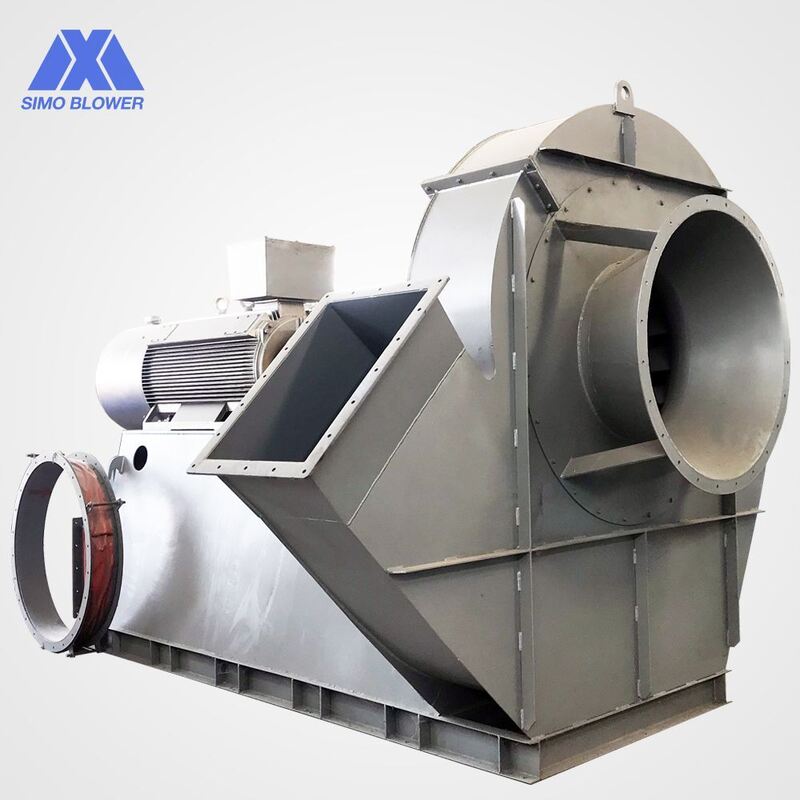

1X30MW Biomass Power Generation Boiler Primary Fan 0

Product features

1.The fan pressure is high, therefore it is especially suitable for 1-20t/h industrial boilers, which equipped with spiral pipes and multi-tube dust collector.
2.The induced draft fan is made into a single suction, different impeller diameter from 400mm to 3000mm.
3.The position of the air outlet of the fan is expressed by the angle of the air outlet of the casing."Left" and "Right" can be made into different angles.
4.Fan drive mode is V-belt drive, coupling drive, double support type.
5.The fan has high efficiency, high total pressure, low noise, flat performance curve, wide economical use area, and adopts backward plate type blades. The efficiency of the fan at the best working point is 86.5%, and the noise index( than A sound Level) is Ls=11.5dB.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

1X30MW Biomass Power Generation Boiler Primary Fan 1

Series no.	7-05 series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-3000mm
	Rotation speed	≤3000rpm
	Pressure range	3160-16540Pa
	Flow range	2473-484756/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250ºC		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
