Free Standing 25573Pa Boiler Fan Air Extractor Centrifugal ID Fan Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Bearing Type: Rolling Bearing Material: Carbon Steel/Alloy Steel/Stainless Steel
Drivetrain: Direct/Coupling Driven/V-belt Driven Impeller: Dynamic Balanced
Motor: SIEMENS/ABB/By Your Demand Main Shaft: High-strength Carbon Structural Steel
High Light:

25573Pa Boiler Fan

,

1296m3/h Boiler Fan

,

3000rpm ID Fan Blower

Free Standing Boiler ID Air Extractor Centrifugal Blower Fan

Introduction

The 7-10 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company.

It has the highest efficiency of 87%.

It belongs to small flow and medium pressure series.



SIMO Blower:



Xinxiang SIMO BLOWER CO., LTD. which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, which covers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.

There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.



Technical data



Series no. 7-10 series Feature selection
Normal anti-corrosion wear-resisting High temperature anti-explosion Remarks
Performance Impeller diameter 400-3500mm
Rotation speed ≤3000rpm
Pressure range 3174-25573Pa
Flow range 1296-416978㎥/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station Can be specified
Cooling method Air cooling, Water cooling, Oil cooling Can be specified
Driven mode Direct driven, Coupling driven, Belt driven Can be specified
Gas composition Gas temperature Normal Customer request Customer request ≥250℃ Customer request
gas characteristic Clean gas Corrosive gas Particulate dust High temperature gas Flammable gas, explosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc Can be specified
Impeller High quality carbon steel FRP, Stainless steel, Rubber Lining Wear-resistant layer or wear-resistant liner, ceramic patch High temperature high quality alloy steel FRP, Aluminum alloy Can be specified
Air inlet cone High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Casing High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Air damper High quality carbon steel FRP, Stainless steel, Rubber Lining High quality carbon steel High quality carbon steel High quality carbon steel Can be specified
Main shaft High strength carbon steel, Alloy structural steel Can be specified
Bearing ZWZ, SKF, FAG, NSK Can be specified
Bearing housing Cast iron
Foundation bolts GB799-1988
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.



Product Features



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

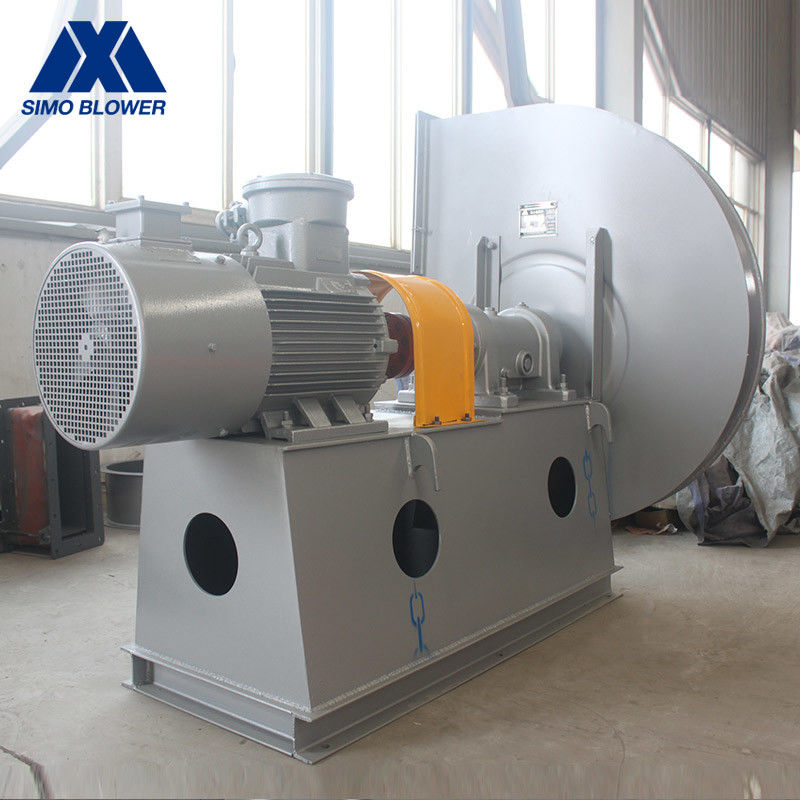

Free Standing 25573Pa Boiler Fan Air Extractor Centrifugal ID Fan Blower 0
