Explosion Proofing 2000 RPM Stokerfeed Boiler Fan Air Exhaust Blower

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 4-09
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Noise: Optional Impeller: Dynamic Balanced
Color: Customer's Requirement Motor Type: Three Phase AC Motor
Bearing Type: Rolling Bearing Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung
High Light:

Explosion Proofing Boiler Fan

,

2000 RPM Boiler Fan

,

Stokerfeed Boiler Fan

Explosion Proofing 2000 RPM Stokerfeed Boiler Air Exhaust Blower Fan



Introduction



The manufacturer has a complete range of products and reasonable prices. The fan has large air volume and sufficient pressure. After many performance tests of vibration, air volume, air pressure, dynamic balance and other performance tests, it will leave the factory. And we provide high-definition pictures, installation and after-sales service. You can choose with confidence.

Centrifugal fans are divided into different types of fan blades: forward centrifugal fans and backward centrifugal fans.

Forward fan: generally a blower, the impeller hub is parallel to the edge of the impeller, and the exit angle of the impeller is greater than 90 degrees.

Backward inclined fan: Generally, it is an induced draft fan. The impeller hub and the impeller are not parallel, and the exit angle of the impeller is less than 90 degrees.

SIMO Blower has a professional technical research and development team, using computer-aided design, can provide customers with various ventilation needs.



Technical data



PRODUCT PARAMETERS
Blower Fan
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Blower Fan
Performance
Impeller diameter 2000~3000

mm

Speed of mainshaft 680~960 rpm
Pressure range 5101~20135 Pa
Flow range

133923~681855

m3/h
Blower Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Direct, Coupling, V-belt Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Blower Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Blower Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.



Advantages and Features



The 4-09 series large-flow centrifugal fan is suitable for conveying clean air or light materials at normal temperature, most commonly used in industrial furnaces for air supply, light particle/powder/crush/fiber transportation, air drying/cooling of materials, ventilation and smoke exhaust, and other areas.

No viscous substances are allowed inside the gas, and the dust and hard particles contained in the gas are larger than 150 mg/m3, and the gas temperature does not exceed 80°C.

Centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

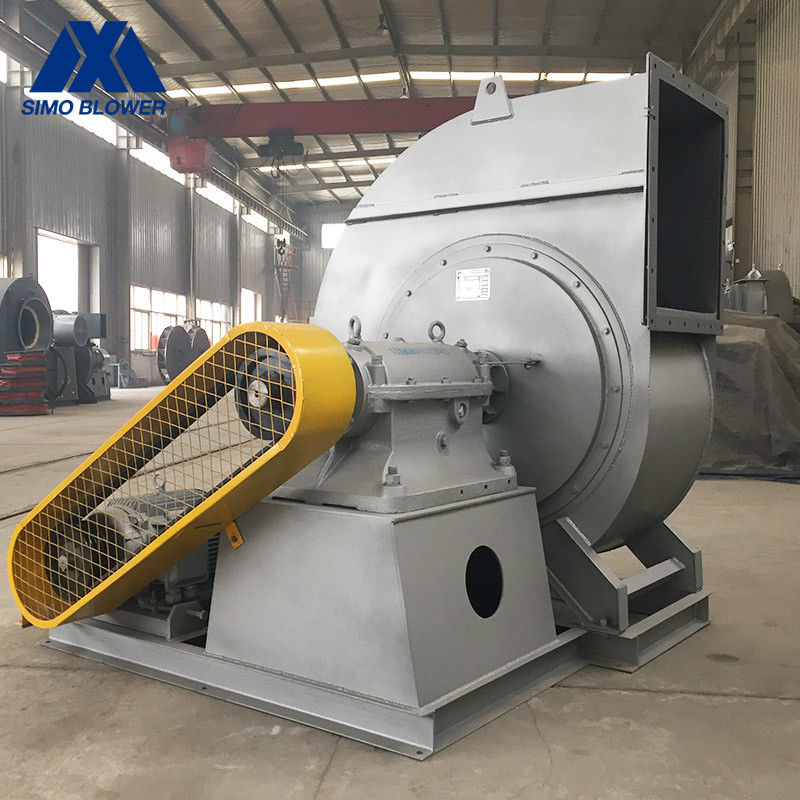

Explosion Proofing 2000 RPM Stokerfeed Boiler Fan Air Exhaust Blower 0

Explosion Proofing 2000 RPM Stokerfeed Boiler Fan Air Exhaust Blower 1

Explosion Proofing 2000 RPM Stokerfeed Boiler Fan Air Exhaust Blower 2
