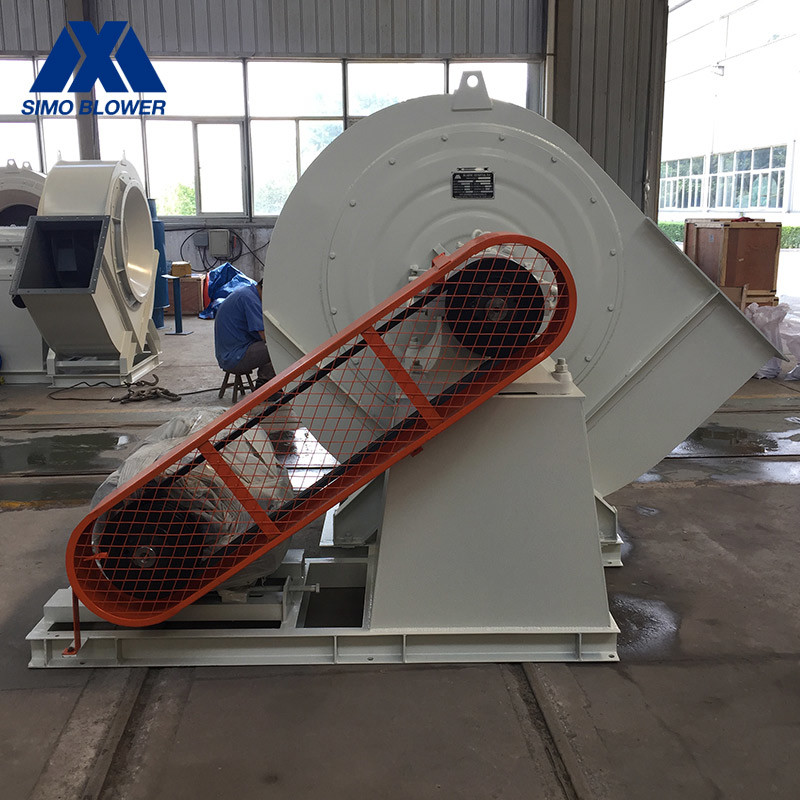

Q235 Single Inlet Antiwear Industrial Boiler ID Centrifugal Boiler Fan
Introduction
The Q235 Single Inlet Antiwear Industrial Boiler ID Centrifugal Boiler Fan ventilator is a high efficiency and energy saving product developed by our company, which is used for ventilation and exhaust system of smelting, chemical, medicine and dust removal production lines.
In the coal-fired boiler system, the ventilation and induce draft systems of various boilers with evaporation capacity of 20 tons/hour to 800 tons/hour can be configured.
Q235 Single Inlet Antiwear Industrial Boiler ID Centrifugal Boiler Fan can output higher outlet pressure and provide more gas flow at the same time, low noise. Stable operation at higher media temperatures. The fan speed can be flexibly set by matching different belt pulley diameters to make the fan run at the highest efficiency point and reduce energy waste. Motor slide guide can be provided for convenient belt tensioning to reduce energy loss caused by belt slack.
The bearing housing is reserved for the installation position of temperature and vibration sensors, which can facilitate the installation of fan operation monitoring device. Use liquid lubricating oil. It is not necessary to open the bearing housing to replace and fill the lubricating oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
Technical data
series | model |
Centrifugal Boiler Fan Rotation Speed |
Centrifugal Boiler Fan Total Pressure |
Centrifugal Boiler Fan Air Capacity |
Power (kW) |
---|---|---|---|---|---|
5-11 Centrifugal Boiler Fan |
4C | 2900 | 990~1873 | 2750~5750 | 3~4 |
5C | 2620~2900 | 1265~2265 | 4840~9870 | 5.5~7.5 | |
6C | 2620~2850 | 1824~3148 | 8370~16760 | 15~18.5 | |
8C | 1820~1980 | 1726~2991 | 13780~27600 | 22~30 | |
9C | 1740~1820 | 2000~3197 | 18780~36140 | 37 | |
12C | 1450 | 3609~2471 | 37100~68250 | 75 | |
12.4C | 1450 | 3903~2638 | 40940~75330 | 90 |
FAQ
1. What parameters need to be provided when you design the industrial centrifugal fans?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
