Coal Fired Boiler Fan Ventilation High Efficient Energy Saving

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-11
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Feature: High Performance
Drivetrain: Direct/Coupling Driven/V-belt Driven Motor: SIEMENS/ABB/By Your Demand
Noise: Optional Color: Customer's Requirement
High Light:

low noise centrifugal fan

,

commercial centrifugal fans

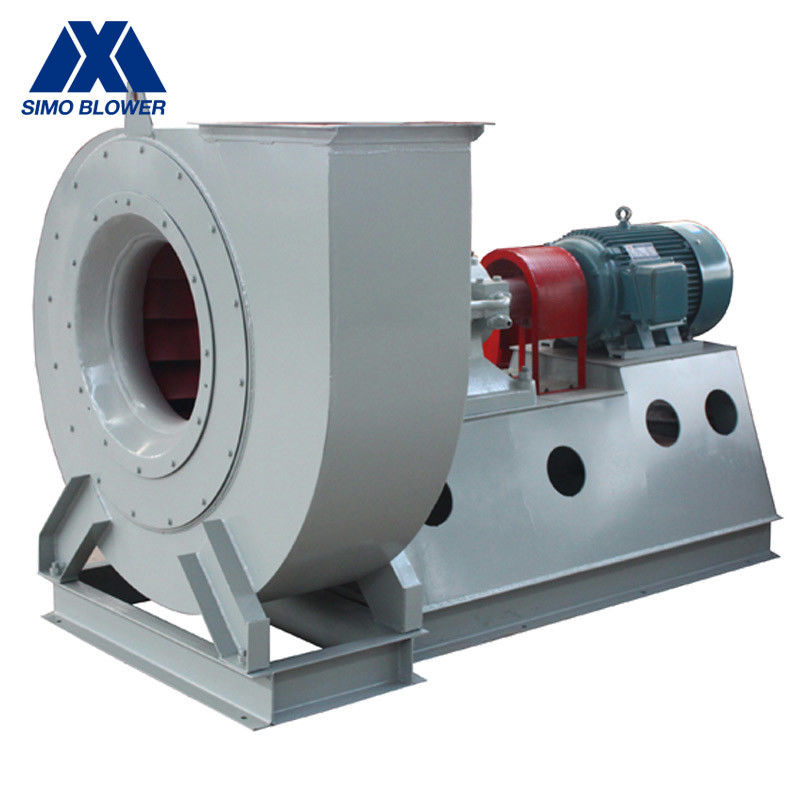

Efficient Energy-Saving Coal-Fired Boiler Single Inlet Boiler Blower Fan



Introduction



The Efficient Energy-Saving Coal-Fired Boiler Single Inlet Boiler Blower Fan has a large flow rate and moderate pressure.

This fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.

The fan is suitable for equipped with economizer (heater) and smoke and dust removal device.

It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.

It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.

Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.

Before the induced draft fan, dust removal device with a dust removal efficiency of no less than 85% must be installed to reduce the dust content of the smoke entering the fan.

It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.



Technical data



series model

Boiler Blower Fan

Rotation Speed
(r/min)

Boiler Blower Fan

Total Pressure
(Pa)

Boiler Blower Fan

Air Capacity
(m³/h)

Power
(kW)

9-11

Boiler Blower Fan

4D 2900 2285~2452 3297~6594 5.5~7.5
4.5D 2900 2893~3060 4695~9389 11~15
5D 2900 3570~3854 6440~12880 15~22
5.6D 2900 4482~4805 9048~18095 30~45
6.3D 1450 1422~1500 6441~12882 7.5~11
7.1D 1450 1804~1942 9220~18439 11~18.5
8D 1450 2285~2462 13189~26378 18.5~30
9D 1450 2893~3099 18779~37558 37~55
10D 1450 3570~3854 25760~42933 55~90
11.2D 960~1450 1961~4835 23961~72381 30~160
12.5D 730~960 1412~2638 25329~66620 22~90
14D 730~960 1775~3305 35586~93596 45~160
16D 730~960 2314~4295 53120~139712 75~280
4D 2900 2069~2187 3297~6594 5.5~7.5
4.5D 2900 2618~2766 4695~9389 11~15
5D 2900 3227~3413 6440~12880 15~22
5.6D 2900 4050~4286 9048~18095 30~37
6.3D 1450 1285~1383 6441~12882 5.5~7.5
7.1D 1450 1628~1746 9220~18439 11~15
8D 1450 2069~2226 13189~26378 18.5~30
9D 1450 2618~2824 18779~37558 30~55
10D 1450 3227~3481 25760~51519 55~90



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.
