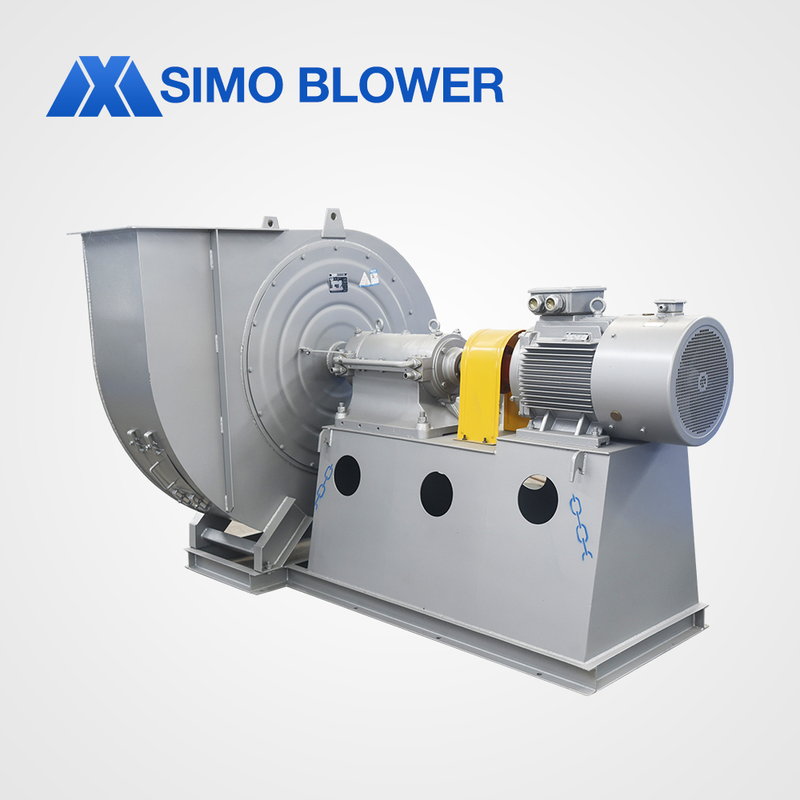

4-22kW Industrial Centrifugal Blower for Sintering Processes

Name: 4-22kW Industrial Centrifugal Blower for Sintering Processes
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 5-12
Price: 2,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	Henan China
Brand Name:	SIMO
Certification:	CE, ISO9001:2008,TUV
Model Number:	SIMO Blower 5-12

Detail Information

Place of Origin:

Henan China

Brand Name:

SIMO

Certification:

CE, ISO9001:2008,TUV

Model Number:

SIMO Blower 5-12

Application:

Industrial Exhaust Ventilation

Main Shaft:

High-strength Carbon Structural Steel

Motor Type:

Three Phase AC Motor

Material:

Stainless Steel

Delivery Time:

30 Days

Color:

Customer's Requirement

Customized Support:

ODM OEM OBM

Mounting:

FREE STANDING

Warranty:

1 Year

Keyword:

Blowers,Industrial Fan,High Efficiency Centrifugal Blower,Induced Draft Fan

Highlight:

High Light

Highlight:

industrial centrifugal blower for sintering

4-22kW centrifugal fan

high-power industrial blower

Trading Information

Minimum Order Quantity:

1 Set

Price:

Negotiable

Packaging Details:

Export Wooden Case Packing, Steel pallet Packing

Delivery Time:

15-35 Days

Payment Terms:

L/C, D/P, T/T

Supply Ability:

300sets 30days

Product Description

4-22kW Variable Frequency Speed Regulation Mineral Powder Sintering Blower Induced Draft Fan

Product Attributes

Attribute	Value
Application	Industrial Exhaust Ventilation
Main shaft	High-strength carbon structural steel
Motor type	Three Phase AC Motor
Material	Stainless Steel
Delivery time	30 days
Color	Customer's Requirement
Customized Support	ODM OEM OBM
Mounting	FREE STANDING
Warranty	1 Year
Keyword	Blowers, Industrial Fan, High Efficiency Centrifugal Blower, Induced Draft Fan

Product Description

The 4-22kW High-Quality Carbon Steel Sintering Blower & Induced Draft Fan features robust construction, high-temperature and wear resistance. Ideal for flue gas handling and dust extraction in sintering processes. Reliable performance and customizable for demanding industrial applications like metallurgy.

Specifications

Series no.	5-12series	Feature selection
Performance	Impeller diameter	400-3300mm
	Rotation speed	≤4000rpm
	Pressure range	684-8687Pa
	Flow range	590-700735m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
	Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
	Gas composition	See detailed specifications below

Product Features

Capable of outputting higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
Fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
Motor sliding guides provided for easy tensioning of the belt to reduce energy loss due to belt slack.
Bearing housing reserved for temperature and vibration sensor mounting positions for convenient installation of fan operation monitoring devices.
Uses liquid lubricant - no need to open bearing housing to replace and fill oil. Observation window provided for easy monitoring of lubricating oil quality and level.
Bearing housing uses labyrinth mechanical seal with unique leak-proof oil design, vent hole at top, and sealant on joints to completely eliminate oil leakage.
Impeller is annealed to completely eliminate internal stress from welding, preventing creep and cracks.
Impeller undergoes high-standard dynamic balance correction to ensure stable fan operation.
All products tested for running and vibration values before delivery for reliable operation.

Please provide the fan operating conditions and parameter information, and the business manager will give you a quote
