Carbon Steel Customized High Pressure Fans Explosion Proof

Name: Carbon Steel Customized High Pressure Fans Explosion Proof
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: cantrifugal fan
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	SIMO BLOWER
Certification:	CE/ISO9001/ISO45001
Model Number:	cantrifugal fan

Detail Information

Place of Origin:

China

Brand Name:

SIMO BLOWER

Certification:

CE/ISO9001/ISO45001

Model Number:

cantrifugal fan

Size:

Customized

Pressure:

Stainless Steel High Pressure Explosionproof

Blade Material:

Carbon Steel Or Stainless Steel

Category:

Simo Blower 9-08

Voltage:

380V/415V/440V/660V/3kv/6kv

Impeller Diameter:

710-1600mm

Electric Current Type:

Motor:

Chinese Famous Brand, ABB, Siemens, Weg Etc

Bearing Cooling:

Air Cooling Or Circulating Water Cooling

Drive:

Direct Driven, Coupling Driven, Belt Driven

Bearing Type:

Rolling Bearing

Warranty:

1year

After-Sales Service Provided:

Field Installation, Commissioning And Training

Customized Support:

ODM OEM OBM

HS Code:

4107960701

Highlight:

High Light

Highlight:

Carbon Steel High Pressure Fans

Customized High Pressure Fans

Explosion Proof High Pressure Fans

Trading Information

Minimum Order Quantity:

≥1 set

Price:

$500-1,0000.00/set

Packaging Details:

1.Standard export wooden case 2.steel pallet waterproof cloth package 3.other package to meet your requirement

Delivery Time:

35days (To be negotiated)

Payment Terms:

L/C, T/T

Supply Ability:

300sets 30days

Product Description

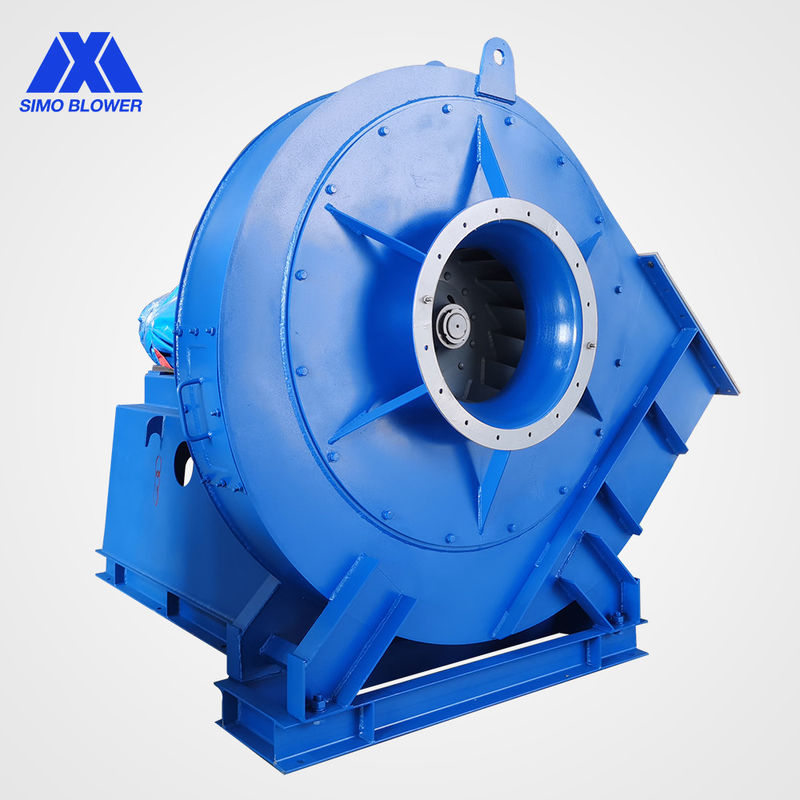

High Quality Carbon Steel Material Can Be Customized High Pressure Centrifugal Blower Industrial Fan

The 7-08 series medium pressure centrifugal fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
It belongs to small flow and medium pressure series.
It has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.

1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

Carbon Steel Customized High Pressure Fans Explosion Proof 1

Small flow, medium pressure boiler high temperature centrifugal fan
Performance	Pressure range	3215-27349	Pa
	Air flow range	1049-33030	m3/h
	Impeller diameter	400-3500	mm
	Speed	≤3000	rpm
Material	Blower fan casing	Q235, Q345, stainless steel	Design as special
	Blower fan shaft	45# steel, Q304, SS304,SS316L
	Blower fan impeller	Q304, 12Cr1Mov,15Crmov, 15MnV
Medium	10---120	Dustiness<80 g/m3	incombustible
Motor	Siemens, ABB, WN, SIMO, LA	IP 54,55,56	3 phase
Optional components	System base frame, Protective screening, Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument, Lube system, Overhead lube tank.
