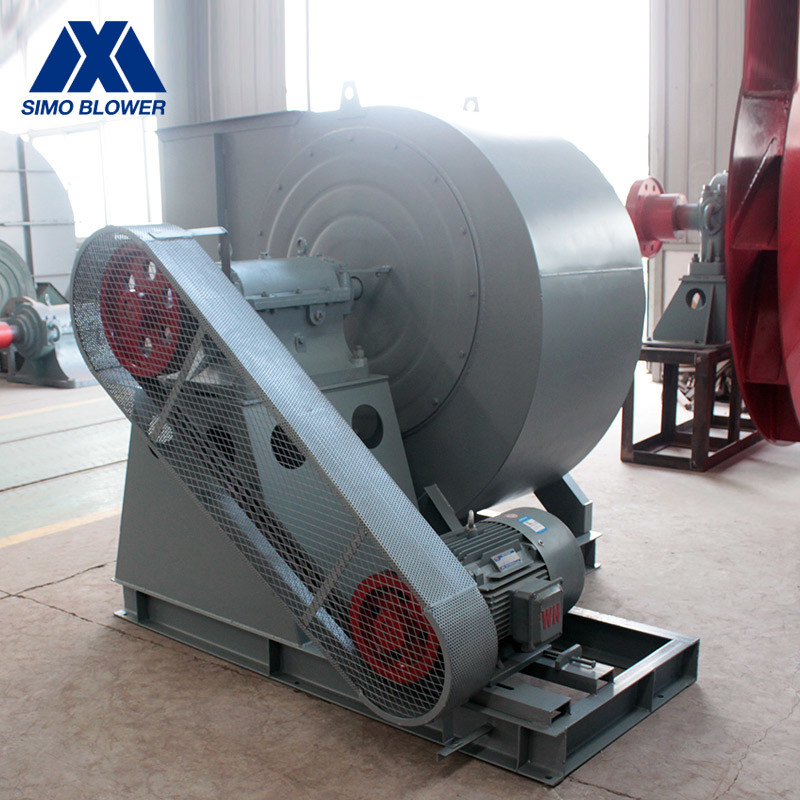

Q235 Industrial Boiler Waste Gas Dust Collecting High Pressure Centrifugal Fan
Introduction
The Q235 Industrial Boiler Waste Gas Dust Collecting High Pressure Centrifugal Fan is the latest series of high-efficiency industrial centrifugal fan developed by our company. It has the highest efficiency of 85.4%.
Q235 Industrial Boiler Waste Gas Dust Collecting High Pressure Centrifugal Fan belongs to small flow and medium pressure series.
Q235 Industrial Boiler Waste Gas Dust Collecting High Pressure Centrifugal Fan has stable and high performance and is widely used in environmental dust removal, material transportation and equipment matching in industrial fields.
Technical data
Centrifugal Fan Series no. | 7-08.26 series | Centrifugal Fan Feature selection | |||||||
---|---|---|---|---|---|---|---|---|---|
Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | ||||
Performance | Impeller diameter | 400-3500mm | |||||||
Rotation speed | ≤3000rpm | ||||||||
Pressure range | 3215-27349Pa | ||||||||
Flow range | 1049-330301㎥/h | ||||||||
Structure | Blade type | Backward, Straight, Aerofoil type | |||||||
Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||||
Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||||
Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||||
Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||||
Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250℃ | Customer request | |||
gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||||
System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||||
Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |||
Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |||
Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||||
Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||||
Bearing housing | Cast iron | ||||||||
Foundation bolts | GB799-1988 | ||||||||
Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
Advantages and Features
1.This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2.The current collector and impeller front plate are processed by advanced spinning process and ensure precision.
3. V-belt driving and coupling driving type fan are equipped with integral bearing box, which has good lubrication, stable operation and long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to assemble and disassemble.
5. The current collector is equipped with a mounting flange to facilitate the use of the pipeline by the customer.
