| Place of Origin: | Henan China |
| Brand Name: | SIMO |
| Certification: | CE, ISO9001:2008,TUV |
| Model Number: | SIMO Blower 9-10 |

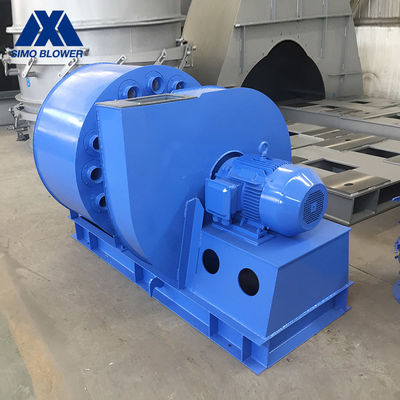

Industrial Stainless Steel Smoke Exhaust High Pressure Centrifugal Blower Fan
Introduction
Industrial Stainless Steel Smoke Exhaust High Pressure Centrifugal Blower Fan is generally used for forging furnace and high pressure forced ventilation and widely used for material transportation.
It is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.
The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.
The centrifugal fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
The 9-10.28 series high-pressure centrifugal fan is the latest developed high-efficiency and energy-saving product, whose performance fully meets the aerodynamic performance of general fan 9-08 series, and has the characteristics of high efficiency, low noise, flat performance curve, large flow regulation range and wide efficient area.
Technical data
| Centrifugal Fan series | Centrifugal Fan model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
|---|---|---|---|---|---|
| 9-10 | 4A | 2900 | 3253～3597 | 824～1704 | 2.2～3 |
| 4.5A | 2900 | 4112～4603 | 1174～2504 | 4～5.5 | |
| 5A | 2900 | 5080～5697 | 1610～3488 | 7.5～11 | |
| 5.6A | 2900 | 6400～7182 | 2262～4901 | 11～15 | |
| 6.3A | 2900 | 8148～9149 | 3220～6978 | 18.5～30 | |
| 7.1A | 2900 | 10426～11717 | 4610～9988 | 37～55 |
Advantages and Features
1.The Industrial Stainless Steel Smoke Exhaust High Pressure Centrifugal Blower Fan can output higher gas pressure, and can provide more gas flow at the same time, low noise.
2. In the case of using the common base, the installation is very simple and basically does not require the support of professional technicians.
3. The motor shaft is elastically connected with the drive shaft. It is not necessary to tighten the belt or replace the belt frequently, and the maintenance workload is small.
4. The Industrial Stainless Steel Smoke Exhaust High Pressure Centrifugal Blower Fan system running at normal temperature with an impeller diameter of less than 1400 mm does not require additional configuration of bearing cooling device, which reduces the user's investment and maintenance workload.
5. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.
6.The Industrial Stainless Steel Smoke Exhaust High Pressure Centrifugal Blower Fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.
7. Running test and vibration value detection after the production is completed, the fan operation is reliable.
Application
It is suitable for conveying air and non-corrosive, unnatural and non-viscous gases.
The temperature of the medium is generally not more than 80°C, and the dust and hard fine particles contained in the medium are not more than 150mg/m3.
The centrifugal fan can also be used in cement kiln decomposition process, steel smelting and other special occasions use of high temperature fan (use heat resistant & high strength material).
