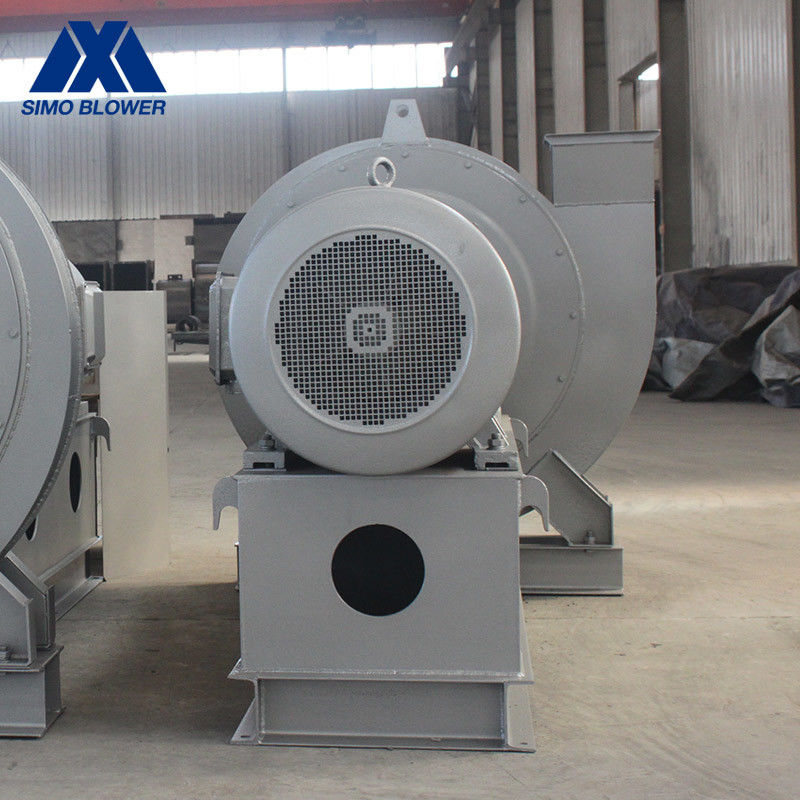

Air Supply Backward High Pressure Forced Draught Centrifugal Fan
Introduction
The 10-06 series high-pressure centrifugal fan is a new product developed by QingHua University for blowing coal powder into the boiler.
This series of products has the advantages of high efficiency, wear resistance, flat performance curve, wide efficiency range, low price, etc.
Small fertilizer plant production support, can also be used in high-pressure forced ventilation of iron furnace, burning furnace, positive pressure oil burner and material, grain conveying or conveying air and non-corrosive, non-self-igniting, non-explosive, non-volatile, non-sticky gas.
The temperature of the transport medium generally isn’t more than 80 °C. The dust and hard fine particles contained in the medium are not more than 150 mg/m3.
Technical data
PRODUCT PARAMETERS
|
|||
Centrifugal Fan Application
|
Temperature | Normal temperature air, Hot air | |
Air composition | Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials | ||
Centrifugal Fan Performance
|
Impeller diameter |
400-2500 |
mm |
Speed of mainshaft |
≤4000 |
rpm | |
Pressure range |
4334-10628 |
Pa | |
Flow range |
852-88814 |
m3/h | |
Centrifugal Fan Structure
|
Blade |
Forward |
|
Impeller support | SWSI (Single Width, Single Inlet), Impeller overhung. | ||
Drivetrain |
Coupling |
Can assign | |
Lubrication | Oil bath lubrication | ||
Bearing cooling | Air cooling, Water cooling, Oil cooling | ||
Centrifugal Fan System
Configuration |
Motor | ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand… |
Can assign |
Impeller | Q235, Q345, SS304, SS316, HG785, DB685... | ||
Casing, Air inlet cone, Air inlet damper |
Q235, Q345, SS304, SS316, HG785, DB685... | ||
Main shaft | 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel... | ||
Bearing | FAG, SKF, NSK, ZWZ… | ||
Centrifugal Fan Optional
Components |
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator, Inlet & Outlet flange, Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc |
Advantages and Features
1.There are 12 long and short blades on the impeller, all of which are forward curved leaves. After the impeller is formed, it is corrected by static and dynamic balance, and the operation is stable and reliable.
2. The centrifugal fan casing is welded into a snail shell by a common steel plate.
3. The air inlet cone is made into a convergent streamlined overall structure, which is fixed with the front cover plate by bolts.
4. The transmission group is composed of shaft, bearing box, coupling, etc. The main shaft is made of high quality steel. The bearing box is the overall structure, using rolling bearings, rolling bearings with mechanical oil lubrication.
5.The common base is welded with carbon steel plate and section steel.
