Anti Explosion High Pressure Industrial Air Blower Air Supply

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower XHP
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Voltage: 380V/415V/440V/660V/6KV/10KV
Motor: SIEMENS/ABB/By Your Demand Warranty: 1 Year
After-sales Service Provided: Field Installation, Commissioning And Training Category: Blower
High Light:

high pressure centrifugal blower

,

stainless steel centrifugal fan

Q235 Air Supply Anti-Explosion High Pressure Centrifugal Blower Fan



Introduction



XHP high-pressure centrifugal blower fan is suitable for high-pressure conveying of clean air at normal temperature and light granules/powder/crush/staple material, mostly used for air trough, forced ventilation, fast drying, forced Cooling and cooling, pressurization or decompression sealing of industrial equipment.

However, the centrifugal blower fan is only used for conveying air and non-corrosive, non-self-igniting, non-explosive, non-viscous substances, and the temperature isn’t more than 80°C, the dust and hard particles contained in the medium is not more than 150mg/m3.



Technical data



Centrifugal  Fan series Centrifugal Fan model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m3/h)
Power
(kW)
XHP 4.8A 2840 4828 ~ 5466 235 ~ 883 0.75 ~ 3
4.7A 2840 5187 ~ 5469 585 ~ 1554 1.5 ~ 4
5.4A 2840 6110 ~ 6918 330 ~1257 1.5 ~5.5


Advantages and Features



1.The Q235 Air supply anti-explosion High Pressure Centrifugal Blower Fan can output very high pressure, suitable for any need to transport high pressure & normal temperature gas industrial occasions.

2.Small size, compact shape, can be placed in a small space.

3.Simple installation, do not need the support of professional technician.

4. High energy transfer efficiency. All the energy of the motor ACTS directly on the impeller, and there is no energy consumption in the transmission process.

5. Low starting current, no motor soft starting device is needed for the power below 7.5kw.

6.Made of high quality carbon steel, Stainless steel or other metal materials can also be used according to user requirements.

7. Running test and vibration value test after the production is completed, the operation is reliable.

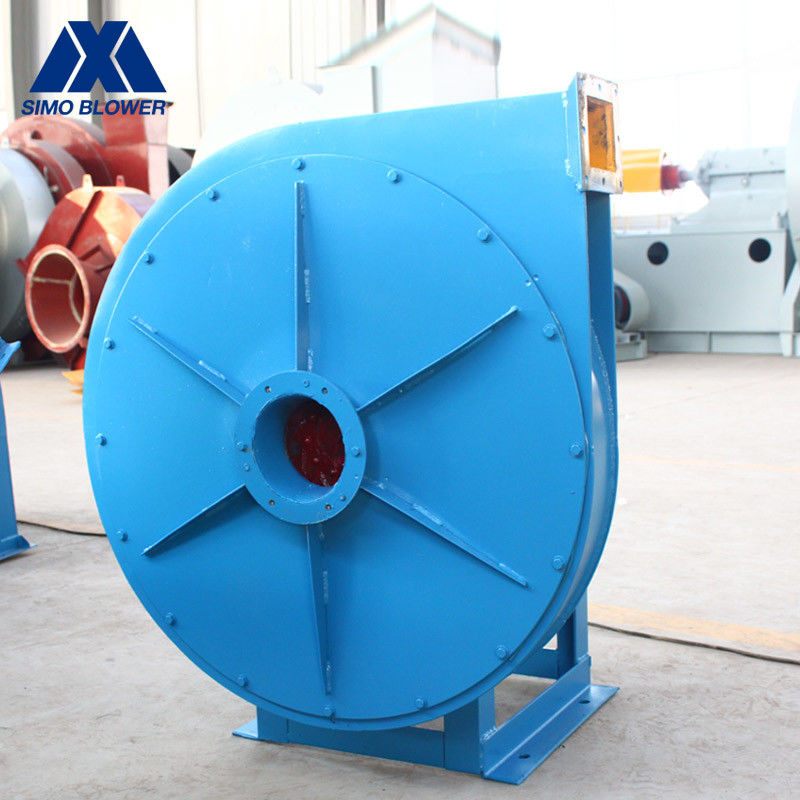

Anti Explosion High Pressure Industrial Air Blower Air Supply 0

Anti Explosion High Pressure Industrial Air Blower Air Supply 1

Anti Explosion High Pressure Industrial Air Blower Air Supply 2
