Waste Gas Dust Collector Fans & Blower For Metallurgy Industrial Boiler

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 7-09
Minimum Order Quantity: 1 Set
Price: 300-5000 USD
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Application: Industrial Ventilation Motor Type: Three Phase AC Motor
Motor: SIEMENS/ABB/By Your Demand Impeller Test: Ultrasonic Flaw Detection
Main Shaft: High-strength Carbon Structural Steel Warranty: 1 Year
High Light:

low noise centrifugal fan

,

backward curved centrifugal fan

Metallurgy Industrial Boiler Waste Gas Dust Collecting Blower Fan



Introduction



The 7-09 series medium pressure centrifugal fan has moderate pressure and large flow, belongs to the low noise series fan and has stable performance.

It’s suitable for conveying normal temperature or high temperature non-flammable gas (normal air, high temperature gas, corrosive gas, dusty gas), and conveying granule/powder/chip/fiber material.

It’s a widely used medium-pressure heavy-duty centrifugal fan, which is commonly used in industrial systems such as boilers, dust collectors, desulfurization systems, cement, chemicals, metallurgy, electric power, and gas and material transportation. It can also be used for general ventilation.

Centrifugal fan is applied in industrial boiler, (centrifugal fan can be applied in industrial boiler,) it also can be applied in industrial kilns, blast furnace, Industrial waste heat recovery device, Electrolytic aluminium production line air purification system and other industrial work environment.

According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you.



Technical data



PRODUCT PARAMETERS
Blower Fan
Application
Temperature Normal temperature air, Hot air

Air composition

Clean air, Dusty air, Corrosive gas, Combustible gas,Powder materials, Light particle materials
Blower Fan
Performance
Impeller diameter 1500~3500

mm

Speed of mainshaft

≤1450

rpm
Pressure range 4217~15694 Pa
Flow range

4293~773605

m3/h
Blower Fan
Structure
Blade Backward
Impeller support SWSI (Single Width, Single Inlet), Impeller overhung.
Drivetrain Coupling Can assign
Lubrication Oil bath lubrication
Bearing cooling Air cooling, Water cooling, Oil cooling
Blower Fan
System
configuration
Motor ABB, SIEMENS, WEG, TECO, SIMO, Chinese brand…



Can assign

Impeller

Q235, Q345, SS304, SS316, HG785, DB685...

Casing, Air inlet cone,

Air inlet damper

Q235, Q345, SS304, SS316, HG785, DB685...
Main shaft 45# steel(High-strength carbon structural steel), 42CrMo, Stainless steel...
Bearing FAG, SKF, NSK, ZWZ…
Blower Fan
Optional
components
System base frame, Protective screening,Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange,  Damper, Electric actuator, Shock isolator, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibrating sensor, Soft starter, Inverter, Special Electrical Motor,System monitoring Instrument, Lube system, Overhead lube tank etc.





Advantages and Features



1. Metallurgy Industrial Boiler Waste Gas Dust Collecting Blower Fan can output higher outlet pressure and provide more gas flow with lower noise. Ability to work stably at higher media temperatures.

2. Customized design according to customer's performance requirements, and optimized by CFD technology, the energy consumption is lower than similar models.

3. The airflow channel and the impeller have been optimized several times, which is more efficient and energy-saving than ordinary large-flow fans.

4. For the material of impeller and main shaft, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel for different working conditions temperature and working speed, so that the impeller and main shaft can still maintain a reliable strength at high temperature.

5. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

6. The impeller is subjected to high standard dynamic balance correction to ensure stable operation of the fan.

7. The fan system adopts a detachable design, which greatly reduces the transportation cost of customers.

8. Each part has an installation number and can be successfully assembled under the guidance of the installation manual.

9. Provide on-site installation guidance services.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

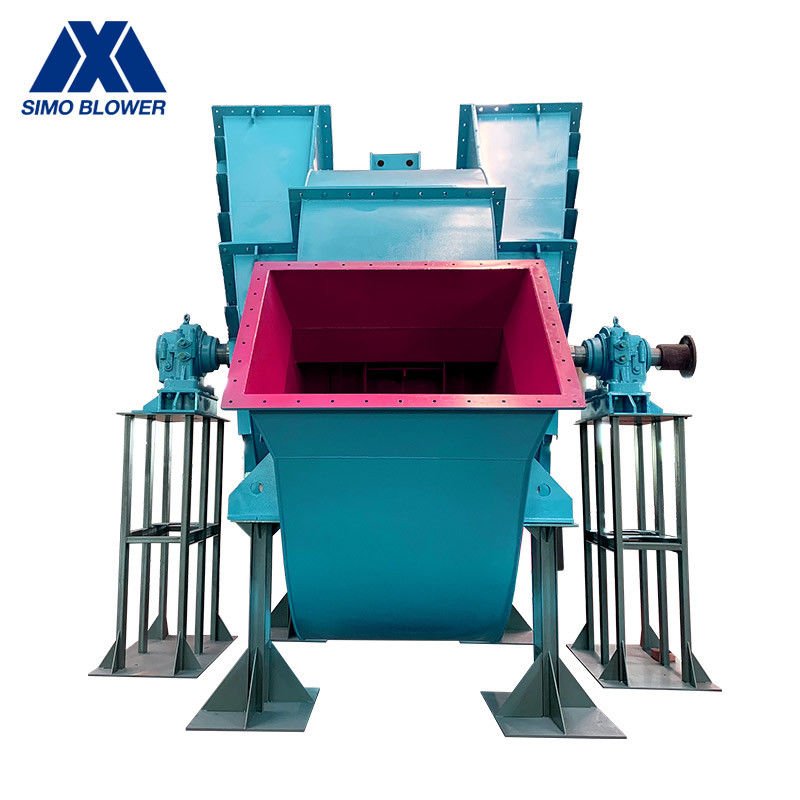

Waste Gas Dust Collector Fans & Blower For Metallurgy Industrial Boiler 0
