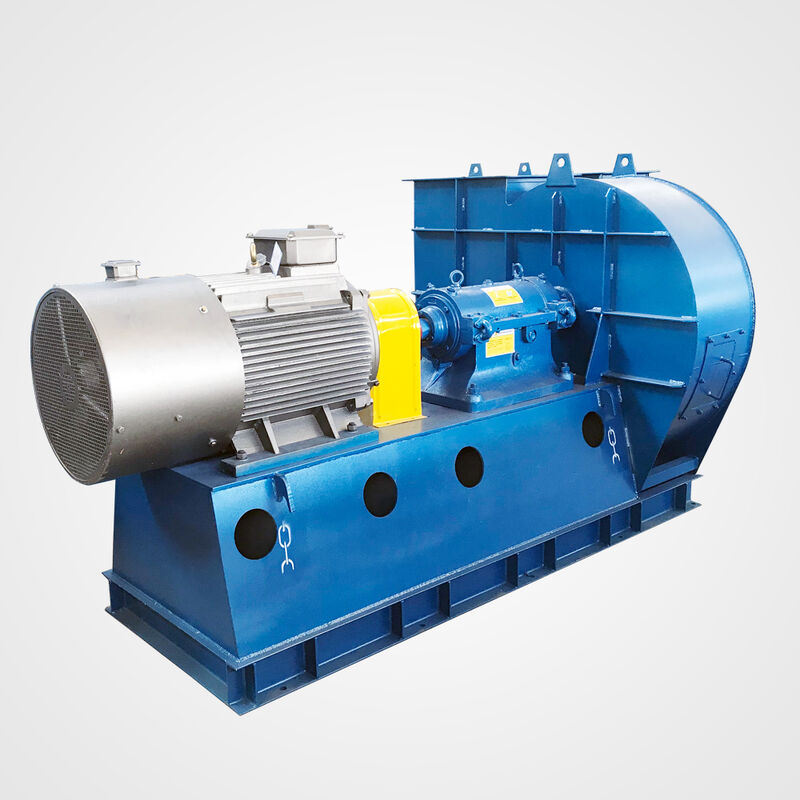

5-06 Series Backward Blade High-Efficiency Centrifugal Fan Blower
5-06 Series Backward Blade High-Efficiency Centrifugal Fan Blower
Brand Name
SIMO BLOWER
Product Model
5-10
Certificate
CE、ISO
Country Of Origin
CHANA
MOQ
≥1 set
Unit Price
$500-1,00000.00/set
Payment Method
L/C, D/P, T/T
Supply Capacity
300sets 30days
Product Details
Highlight:
backward blade centrifugal fan
,high-efficiency industrial blower
,5-06 series centrifugal fan
Protection Level:
IP55
Impeller Testing:
Dynamic Blancing Adjusting
Insulation Class:
F
Motor:
AC Motor
Customized Support:
ODM OEM OBM
After-Sales Service Provided:
Field Maintenance And Repair Service
Product Description
Detailed Specifications And Features
Detail introduction :
The 5-06 Series represents our advanced line of backward-blade centrifugal fan blowers, engineered to deliver exceptional efficiency and reliable performance in demanding industrial applications. Designed with a backward-curved aerodynamic impeller, this series achieves superior energy utilization while maintaining stable operation across varying system pressures.
Specification
|
Series no.
|
5-06series
|
Feature selection
|
|||||
|
Normal
|
anti-corrosion
|
wear-resisting
|
High temperature
|
anti-explosion
|
Remarks
|
||
|
Performance
|
Impeller diameter
|
400-2500mm
|
|
||||
|
Rotation speed
|
≤3000rpm
|
|
|||||
|
Pressure range
|
1567-5764Pa
|
|
|||||
|
Flow range
|
2470-377586m³/h
|
|
|||||
|
Structure
|
Blade type
|
Backward, Straight, Aerofoil type
|
|
||||
|
Impeller support
|
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
|
|
|||||
|
Lubrication method
|
Oil bath lubrication, grease lubrication, lubrication oil station
|
Can be specified
|
|||||
|
Cooling method
|
Air cooling, Water cooling, Oil cooling
|
Can be specified
|
|||||
|
Driven mode
|
Direct driven, Coupling driven, Belt driven
|
Can be specified
|
|||||
|
Gas composition
|
Gas temperature
|
Normal
|
Customer request
|
Customer request
|
≥250℃
|
Customer request
|
|
|
gascharacteristic
|
Clean gas
|
Corrosive gas
|
Particulate dust
|
High temperature gas
|
Flammable gas, explosive gas
|
|
|
|
System configuration
|
Motor brand
|
Chinese famous brand, ABB, Siemens, WEG etc
|
Can be specified
|
||||
|
Impeller
|
High quality carbon steel
|
FRP, Stainless steel, Rubber Lining
|
Wear-resistant layer or wear-resistant liner, ceramic patch
|
High temperature high quality alloy steel
|
FRP, Aluminum alloy
|
Can be specified
|
|
|
Air inlet cone
|
High quality carbon steel
|
FRP, Stainless steel, Rubber Lining
|
High quality carbon steel
|
High quality carbon steel
|
High quality carbon steel
|
Can be specified
|
|
|
Casing
|
High quality carbon steel
|
FRP, Stainless steel, Rubber Lining
|
High quality carbon steel
|
High quality carbon steel
|
High quality carbon steel
|
Can be specified
|
|
|
Air damper
|
High quality carbon steel
|
FRP, Stainless steel, Rubber Lining
|
High quality carbon steel
|
High quality carbon steel
|
High quality carbon steel
|
Can be specified
|
|
|
Main shaft
|
High strength carbon steel, Alloy structural steel
|
Can be specified
|
|||||
|
Bearing
|
ZWZ, SKF, FAG, NSK
|
Can be specified
|
|||||
|
Bearing housing
|
Cast iron
|
|
|||||
|
Foundation bolts
|
GB799-1988
|
|
|||||
|
Option parts
|
System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
|
||||||
Product features :
1. It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
2. The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.
3. The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.
4. For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.
5. For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.
6. The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
7. The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.
8. After the production is completed, all products are tested for running and vibration values for reliable operation.
9. There are a variety of accessories to choose from.
