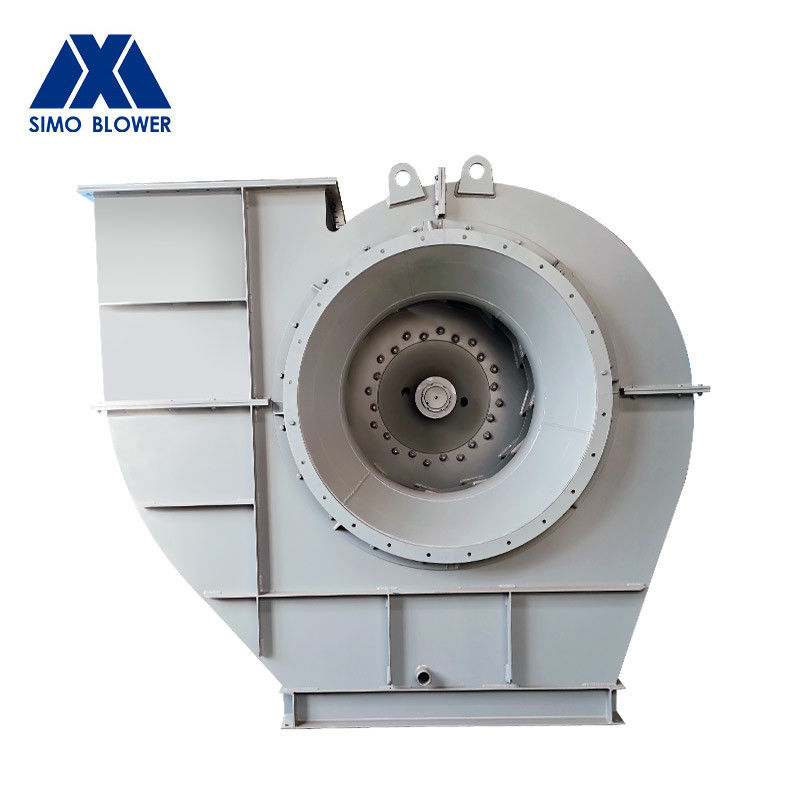

Coal Fired Primary Boiler Centrifugal Fan Induced Draft

Coal Fired Primary Boiler Centrifugal Fan Induced Draft
Brand Name
SIMO BLOWER
Product Model
SIMO Blower 8-12
Certificate
CE
Country Of Origin
China
MOQ
1
Unit Price
8000
Product Details
Highlight:

primary boiler centrifugal fan

,

induced draft boiler centrifugal fan

,

coal fired boiler induced draft fan
Air Volume: 97000m³/h
Application: Boiler
Material: Stainless Steel
Noise: ≤85dB
Power: 75KW
Pressure: 2900Pa
Product Name: Boiler Fan
Size: Customized
Speed: 1400rpm
Temperature: ≤120℃
Type: Centrifugal Fan
Voltage: 220V
Warranty: 1 Year
Weight: 50kg
Product Description
Detailed Specifications And Features

Product Description:

The primary function of  centrifugal fan in a boiler is the suction or creating negative pressure to dispense the flue gases or air from the system.
Induced Draft Fans or ID Fans removes flue gases from the combustion chambers and creates a vacuum of negative air pressure with a blower to suck the air out of the combustion chamber. These air or flue gases are discharged from the boiler through a stack or chimney.



Features:

  • Product Name: Boiler Centrifugal Fan
  • Noise Level: Low
  • Color: Custom
  • Rotation Speed: 2744~15000
  • Material: Stainless Steel 201,304,316,316L
  • Maintenance: Low
  • Specialized in dust collector system Fan
  • Cement Plant Fan
  • series model Rotation Speed
    (r/min)    		 Total Pressure
    (Pa)    		 Air Capacity
    (m³/h)    		 Power
    (kW)
    8-12 4D 2900 1942～2108 3242～6869 5.5～7.5
    4.5D 2900 2462～2805 4616～9781 7.5～11
    5D 2900 3030～3375 6333～13417 15～22
    5.6D 2900 3805～4227 8897～18847 30～37
    6.3D 1450 1206～1373 6334～13419 5.5～7.5
    7.1D 1450 1530～1746 9066～19208 11～15
    8D 1450 1942～2216 12969～25059 18.5～30
    9D 1450 2462～2805 18466～39122 37～45
    10D 1450 3030～3462 25330～53666 55～75
    11.2D 960～1450 1667～4345 23561～75397 45～132
    12.5D 730～960 1206～2305 24907～69396 22～75
    14D 730～960 1510～2972 34993～97496 37～132
    16D 730～960 1971～3884 52234～145533 75～250

Technical Parameters:

Parameters Details
Noise Level Low
Size Large
Color Custom
Power High
Weight Heavy
Total pressure 2744~12409
Main function cement plant
Feature High Efficiency
Speed High
Maintenance Low
centrifugal fan in boiler Yes
centrifugal fan in boiler Yes
centrifugal fan in boiler Yes
centrifugal fan in boiler Yes
centrifugal fan in boiler Yes

Applications:

Industrial boilers are one of the most popular application fields of SIMO BLOWER products. SIMO BLOWER can provide a complete set of fan products, which can meet the performance requirements of industrial boiler systems such as 1~450T coal-fired boilers, biomass boilers, and waste incineration boilers.

SIMO BLOWER can be used by industrial boiler fan users: coal-fired boiler fans, biomass fuel boiler fans, waste incineration boiler fans, industrial boiler induced draft fans (FD fans), induced draft fans (ID fans), primary fans (PA fan), secondary fan (SA fan), and flue gas dedusting fan, flue gas desulfurization fan (FGD fan), flue gas denitrification fan, etc.



FAQ:



Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is SIMOBLOWER.
Q2: What is the Model Number of this product?
A2: The Model Number of this product is cantrifugal fan.
Q3: Where is this product from?
A3: This product is from China.
Q4: Does this product have CE certification?
A4: Yes, this product has CE certification.
Q5: What is the minimum order quantity of this product?
A5: The minimum order quantity of this product is 1.
