Dust Collector Fan
>

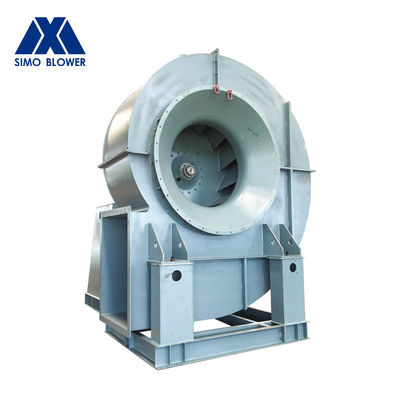

1400rpm Dust Removal Industrial Blower Fans Desulfurization Centrifugal

1400rpm Dust Removal Industrial Blower Fans Desulfurization Centrifugal

Product Details:
Place of Origin: China
Brand Name: SIMO BLOWER
Certification: CE
Model Number: SIMO Blower 9-08
Detail Information
Place of Origin:
China
Brand Name:
SIMO BLOWER
Certification:
CE
Model Number:
SIMO Blower 9-08
Feature:
High Performance
Application:
Industrial
Temperature:
Normal Temperature Air/Hot Air
Main Shaft:
High-strength Carbon Structural Steel
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Lubrication:
Oil Bath Lubrication
Noise:
Optional
Impeller:
Dynamic Balanced
Certification:
CE
Air Flow:
180000m3/h
Color:
Silver
Noise Level:
≤85dB(A)
Packaging:
Carton Box
Power Rating:
220V/50Hz
Power Supply:
AC/DC
Pressure:
4230Pa
Product Name:
Dust Collector Fan
Speed:
1400rpm
Warranty:
1 Year
High Light:

High Light

High Light:

1400rpm industrial blower fans

,

desulfurization industrial blower fans

,

desulfurization dust collector blower fan

Trading Information
Minimum Order Quantity:
1
Price:
5000
Product Description

Introduction



Desulfurization fans are suitable for ventilation and induced draft fan systems of desulfurization towers in thermal power plants. When there are no other special requirements, 6-41 can also be used for mine ventilation and general ventilation. The medium transported by the ventilator is air, the temperature does not exceed 80oC, and the medium transported by the induced draft fan is flue gas. A dust removal device must be installed in front of the induced draft fan. According to general power plant usage conditions, the dust removal efficiency must not be less than 85%.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-11 14D 1450 54357086 2288941542 90110
15D 1450 62408134 2815351095 110160
16D 1450 70999255 3416762011 160220
17D 1450 801410448 4089274379 220280
18D 1450 898611713 4864888292 280400
19D 1450 1001213051 57215103840 400500
20D 1450 1109314461 66733121114 450630


Product Features



Provide factory measurement performance, vibration, and test report to prevent failure and ensure the operation of the fan in good condition.The converging and streamlined air inlet is made into a unitary structure and bolted to the inlet side of the fan.



FAQ


1,What parameters need to be provided when you design the industrial centrifugal fans?

A: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2,How about your company’s pre-sales service and after-sales service?
A: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3,Does your company have qualifications?
A: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
