Dust Collector Fan
>
Metallurgy Main Shaft Duct Flange Dust Collector Blower Fan

Metallurgy Main Shaft Duct Flange Dust Collector Blower Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 5-12
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 5-12
Motor Type:
Three Phase AC Motor
Material:
Carbon Steel/Alloy Steel/Stainless Steel
Drivetrain:
Direct/Coupling Driven/V-belt Driven
Bearing:
SKF/FAG/By Your Demand
Bearing Cooling:
Air Cooling Or Circulating Water Cooling
Lubrication:
Oil Bath Lubrication
High Light:

High Light

High Light:

3550r/Min Dust Collector Blower Fan

,

2221pa Dust Collector Blower Fan

,

3550r/Min dust extraction fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

Metallurgy Main Shaft Duct Flange Dust Collector Air Blower Fan



Introduction Of Centrifugal Fan



When the fan is working, the airflow enters the blade space from the fan axially, and then rotates with the impeller under the drive of the impeller; on the other hand, it increases energy under the action of inertia, leaves the impeller along the radius, and does work by the centrifugal force generated. The fan is called a centrifugal fan.



The main components of the centrifugal fan are: impeller, casing, coupling and shaft. The impeller is the main work component that generates wind pressure and transfers energy; the casing is mainly used to introduce gas and exhaust gas, and at the same time convert part of the kinetic energy of the gas into pressure energy; the coupling is used to connect the motor and the fan to transmit torque;the shaft is installed with the motor through a coupling and the impeller is fixed.



The centrifugal fan is mainly composed of an impeller and a casing. The impeller of the small fan is directly mounted on the motor, and the large fan is connected with the motor through a coupling or a pulley.



Centrifugal fans generally use single-side air intake and use single-stage impellers; those with large flow can be air-intaken on both sides and use two back-to-back impellers, which are also called double-suction centrifugal fans.



The principle of gas discharge: When the gas between the blades of the centrifugal fan rotates, the kinetic energy obtained by the centrifugal force is discharged from the periphery of the impeller, guided by the volute-shaped casing, so that it flows to the outlet of the ventilator, thereby being in the center of the impeller. Negative pressure is formed in the part, so that the external airflow continuously flows in and supplements, so that the fan can discharge the gas.



 Product Features

  • The centrifugal blower has compact structure, beautiful appearance, good stability and easy installation and maintenance.
  • Centrifugal fan runs smoothly: the optimized design of the impeller reduces the axial force to a minimum, and there is an efficient impeller, and the static and dynamic balance correction makes the whole machine run smoothly. Without any damping device, the bearing Amplitude ≤0.04mm.
  • Low noise: when the blower is running, there is no mechanical friction, and reasonable blade profile is adopted to minimize the noise. The noise produced by centrifugal blower is high frequency noise, which can be soundproofed as long as there are obstacles, so there is almost no noise outside the blower room.
  • Oil-free machinery: blower bearings are lubricated with grease, and the service life of bearings is over three years. The fan does not produce oil and gas during operation. Fans with special requirements use lithium molybdenum disulfide grease to lubricate bearings.
  • The impeller of centrifugal fan adopts special compound line shape, which reduces internal leakage and improves volumetric efficiency.
  • Easy to adjust: the regulating door on the inlet side adjusts the flow rate and the regulating door on the outlet side adjusts the pressure
  • Drive mode: usually a two-pole asynchronous motor, but also a four-pole motor drive. According to different user power grids, motors of different voltages can be used.

Technical data



series model

Air Blower Fan

Rotation Speed
(r/min)

Air Blower Fan

Total Pressure
(Pa)

Air Blower Fan

Air Capacity
(m³/h)

Air Blower Fan

Power
(kW)

5-12 4D 25003550 7422221 20655564 2.25.5
5D 22403150 9642819 37729851 411
6.3D 20002800 12213545 673717516 7.522
8D 14002000 11003323 965625619 1130
10D 12501800 14194483 1545144634 2275
12.5D 10001400 21454234 2414367803 37110



Provide the required centrifugal fan parameters, SIMO Blower can be customized according to requirements, the supply speed is fast, we will quote you in real time, the price is favorable!



FAQ



1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.



2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.



3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.

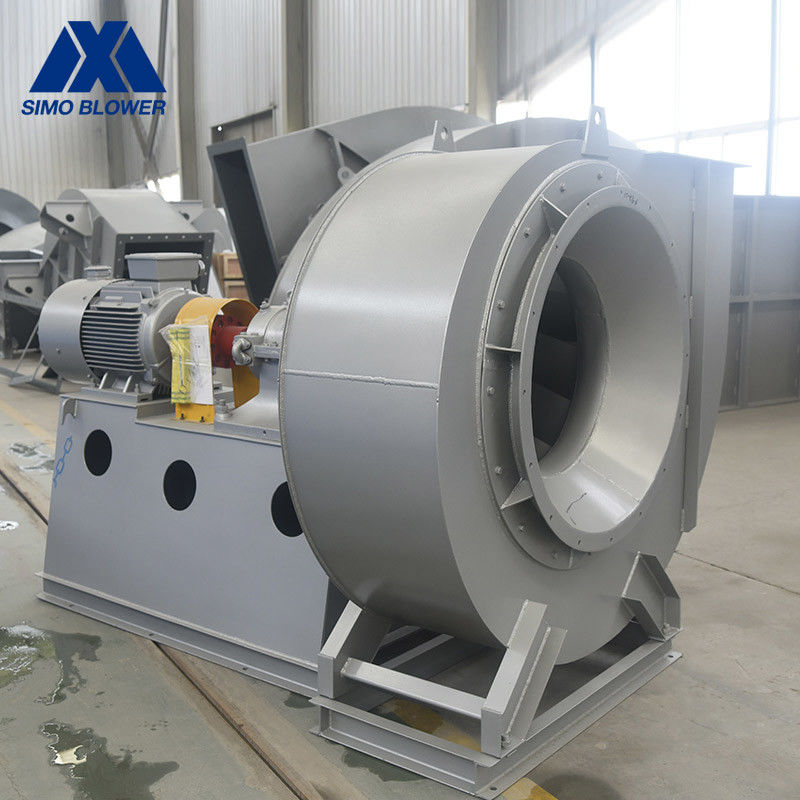

Metallurgy Main Shaft Duct Flange Dust Collector Blower Fan 0
