| Place of Origin: | china |
|---|---|
| Brand Name: | SIMOBLOWER |
| Model Number: | cantrifugal fan |
| Minimum Order Quantity: | 1 |
| Delivery Time: | 30 |
| Certification: | CE | Bearing Cooling: | Air Cooling Or Circulating Water Cooling |
|---|---|---|---|
| Lubrication: | Oil Bath Lubrication | Power Source: | Three Phase AC Motor |
| Impeller Test: | Ultrasonic Flaw Detection | System Type: | Single Inlet, Overhang Type |
| Medium: | Clean Air/Dusty Air | Noise Level: | Low |

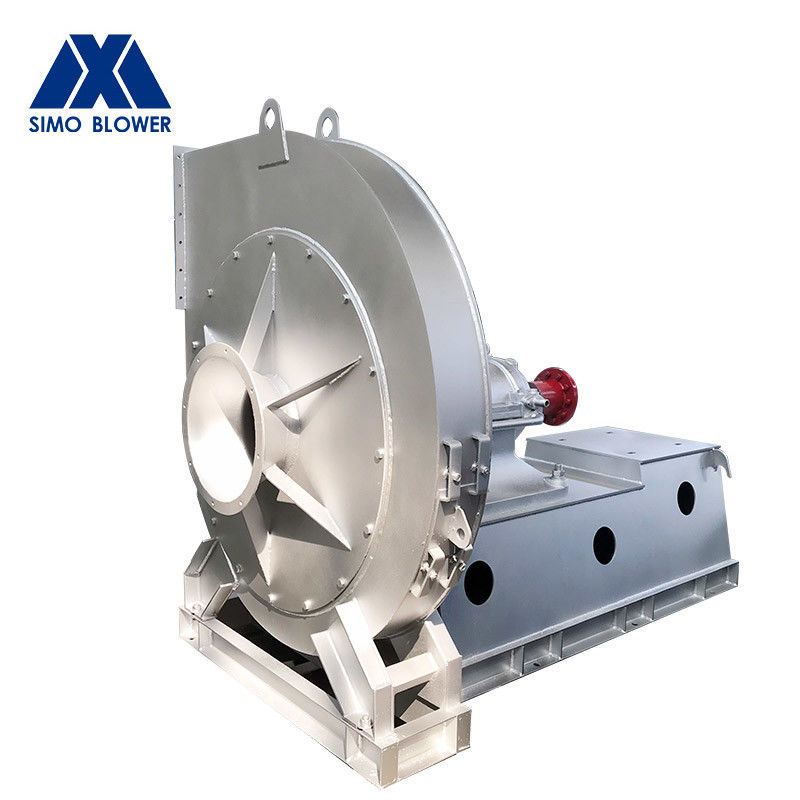

| Name: | Dust Collector Fan | Product Name: | Aluminium Alloyed Air Cooling High Temperature Ventilate Blower Fan |
| High Light: | aluminium alloyed ventilator centrifugal industrial,air cooling ventilator centrifugal industrial,aluminium centrifugal blower for dust collector |
||
| Series | Model | Rotation Speed (r/min) |
Total Pressure (Pa) |
Air Capacity (m³/h) |
Power (kW) |
| 7-05 | 9D | 980~2980 | 3160-16540 | 2473-484756 | 30 ~ 37 |
| 7-07 | 8D~16D | 980~2980 | 451~27519 | 173~100788 | 7.5~315 |
| 7-08 | 7.1D~16D | 980~2980 | 3215-27349 | 1049-330301 | 18.5~850 |
| 7-09 | 5.6A~7.1A | 1420~1460 | 1263~2493 | 2953~12378 | 3~11 |
| 5C~10C | 1470~3030 | 2264~4109 | 4486~36478 | 11~55 | |
| 9D | 1450 | 3427 ~ 3972 | 12519 ~ 25038 | 30 ~ 37 | |
| 7-10 | 7.1D~16D | 980~2980 | 3174-25573 | 1296-416978 | 18.5~850 |
| 8-12 | 4D~16D | 730~2900 | 1206~4345 | 3242~145533 | 5.5~250 |
| 8-17 | 7.1D~9D | 2900~2930 | 10728~20250 | 768~6019 | 11~55 |
| 9-03 | 8D~9D | 2950 | 16680~22314 | 3019~11632 | 37~110 |
| 9-08 | 4A~6.3A | 2900 | 3407~9698 | 2198~13525 | 5.5~55 |
| 7.1D~16D | 960~2900 | 3031~16250 | 8792~123090 | 18.5~850 | |
| 9-10 | 4A~7.1A | 2900 | 3253~11717 | 824~9988 | 2.2~55 |
| 8D~16D | 960~2900 | 2705~15425 | 3297~63305 | 7.5~315 | |
| 9-11 | 4D~16D | 730~2900 | 1412~4835 | 3297~66620 | 5.5~280 |
Contact us for more information !
|
Xinxiang SIMO BLOWER CO., LTD. which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, which covers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year. There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc. |
