| Place of Origin: | CHANA |
|---|---|
| Brand Name: | SIMO BLOWER |
| Model Number: | Y |
| Ambient Temperature: | 20℃-500℃ | Insulation Class: | F |
|---|---|---|---|
| Impeller Testing: | Dynamic Blancing Adjusting | Pressure: | 2000-10000Pa |
| Air Volume: | 4486~3647m3/h | Speed: | 1450-2900rpm |
| Blade Number: | XQI | Application: | Cement Kiln ,Boiler,Tunnel, Factory,Engineering Construction |
| High Light: | coupling driving backward curved fan,oven wall cooling backward curved fan |
||
Introduction

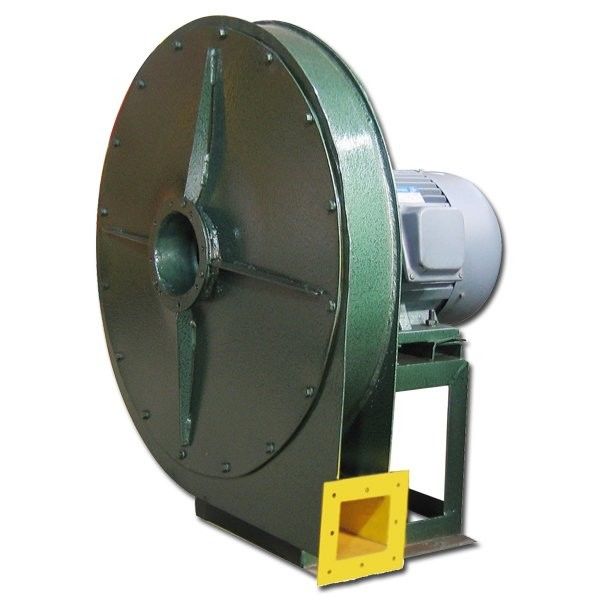

XQI and XQII high-pressure centrifugal fans are chute fans specially designed for cement kiln systems. The fan can also be used for blasting various iron furnaces, melting furnaces and forging furnaces, and is also suitable for conveying air and non-corrosive, unnatural, and non-viscous gases. The temperature of the conveying medium shall not exceed 80°, and the dust and hard particles contained in the medium shall not exceed 150mg/m3.
Technical Parameters
| Parameter | Value |
| Type | Induced Draft Fan |
| Pressure |
2000-10000Pa |
| Air Volume |
4486~3647m3/h |
| Insulation Class | F |
| Voltage | 380V/50Hz |
| Ambient Temperature | 20℃-500℃ |
| Blade Number | 9-08 |
| Blade Type | Backward Curved |
| Speed | 1450-2900rpm |
| Motor | AC Motor |
Advantages and Features
1. Capable of outputting very high outlet pressure, it is suitable for industrial occasions where high pressure & normal temperature gas needs to be transported.
2. Small in size and compact in shape, it can be placed in a narrow space.
3. The installation is simple and does not require the support of professional technicians.
4. High energy transfer efficiency, all the energy of the motor directly acts on the impeller, and there is no energy consumption during the transfer process.
5. The starting current is small, and the power below 7.5KW does not need a motor soft start device.
6. Made of carbon steel, stainless steel or other metal materials can also be used according to user requirements.
7. After the production is completed, it has passed the operation test and vibration value detection, and the operation is reliable
FAQ
1. What parameters need to be provided when you design the Heat Dissipation Power Plant Blower Fan?
Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.
If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.
2. How about your company’s pre-sales service and after-sales service?
Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.
After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
