Kiln Frequency Conversion Fan Desulfurization And Dust Removal

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO
Model Number: SIMO Blower 4-10
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
After-sales Service Provided: Engineers Available To Service Machinery Overseas Total Pressure: 2139~9800pa
Structure: Cantilever Application: Kiln Frequency Conversion
Type: Double Suction Blades: Backward Curve Blade
Blade Number: 12 Characteristics: Low Pressure
Feature: Coupling Driving Impeller Testing: Dynamic Blancing Adjusting
Cooling Type: Air Cooling/Circulating Water Cooling
High Light:

Kiln frequency conversion fan

,

conversion fan desulfurization

,

Coupling Driving blower fans

Kiln frequency conversion fan Desulfurization and dust removal fan Flue gas desulfurization fan

Product description

Lots of blower fans that work in dust collector and air purification systems need to deal with dirty air, even high temperature and corrosive gas. We design the Dust collection fan, Flue gas desulfurization fan, Flus gas dentitrification fan, Abrasion fan and corrosion resistant fan for dust collecting system, gas desulfurization system, denitration system, in addition to provide adequate performance, the impeller, shaft, and casing of fan will be enhanced wear and corrosion resistance, extend the service life more than 3 times, helping the customer to save the cost of use and maintenance.

Product structure

Kiln Frequency Conversion Fan Desulfurization And Dust Removal 0

Product parameters

Product Flow range Pressure range Speed ofmain shaft Impeller diameter
m3/h cfm pa mmwc rpm mm in"
4-14A 2749-431290 1617-253700 1476-7300 150-745 ≤4000 400-2200 15-87
6-11F 52395-575176 30820-338340 2304-14068 234-1435 ≤1450 1500-3600 59-142
6-12F 15189-703455 8934-413798 2171-12259 221-1251 ≤1450 1800-3300 70-130
5-12C 590.4-700735 347-412198 684-8687 69-886 ≤4000 400-3300 15-130
4-10D 10696-952530 6291-560312 615-8302 62-847 ≤4000 400-3000 15-120
6-2*11F 1800-3300 1058-1942 2025-14068 206-1434 ≤1450 1500-3600 15-119
6-05D 884-321950 520-189383 2304-14068 234-1435 ≤4000 1500-3600 59-142

About us

Xinxiang SIMO Blower Co., Ltd which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association (CGMA).SIMO BLOWER is one of the main large fan manufacturers in Central China, which owns more than 200 employees and the production capacity of 15000 sets one year.There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.

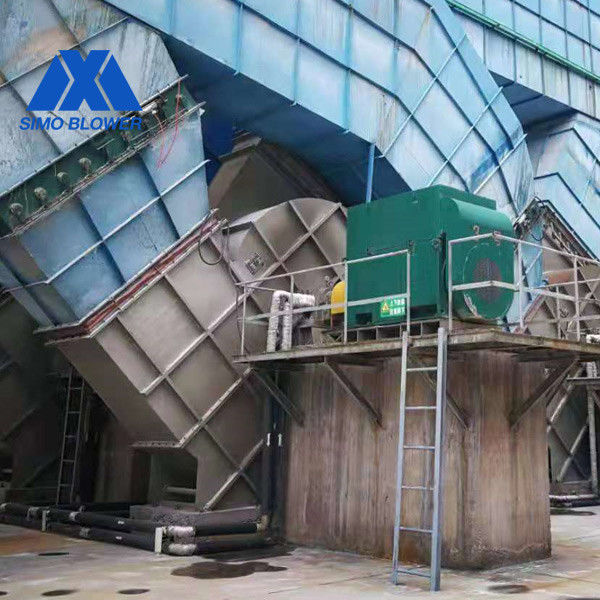

Kiln Frequency Conversion Fan Desulfurization And Dust Removal 1
