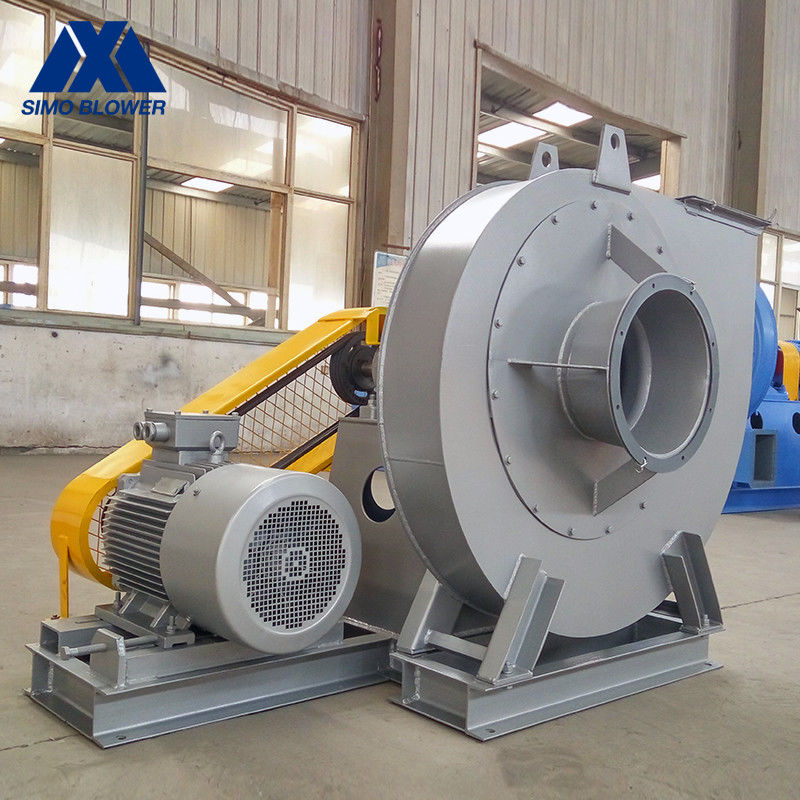

Single Inlet Mine Ventilate Centrifugal Flue Gas Fan

Basic Information
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 6-05
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Wooden Case Packing, Steel pallet Packing
Delivery Time: 15-35 Days
Payment Terms: T/T, L/C, Payment Term Is Negotiable
Supply Ability: 500 Sets Per Month
Feature: High Performance Noise: Optional
Category: Blower Color: Customer's Requirement
Impeller: Dynamic Balanced Bearing Type: Rolling Bearing
High Light:

2000r/min Flue Gas Fan

,

Centrifugal Flue Gas Fan

,

flue gas centrifugal fan

Aluminium Alloyed Single Inlet Mine Ventilate Flue Gas Centrifugal Fan



Introduction



The 6-05 series fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.

It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.

The maximum temperature used for the fan does not exceed 250°C.

It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
6-05 6C 20002880 20795884 15984375 311
7C 16802880 80125864 36556948 418.5
8C 15002880 207910474 284210371 437


Advantages and Features



1.This series of fan design is based on aerodynamic sketches determined by more than one year of model test and adopts advanced proprietary technology, such as high-strength wear-resistant impeller and anti-leakage bearing housing.

2. The range of high-efficiency working conditions is wide, the machine numbers are arranged intensively, and it is easy to select high-efficiency working conditions.

3. High strength wear resistant impeller.

4. The fan is integrated or split assembly.

5. The fan is fully equipped.

6. Relevant parameters complete.

7. The fan is easy to install and repair.



FAQ



1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, BV certifications and so on.



Single Inlet Mine Ventilate Centrifugal Flue Gas Fan 0

Single Inlet Mine Ventilate Centrifugal Flue Gas Fan 1

Single Inlet Mine Ventilate Centrifugal Flue Gas Fan 2
